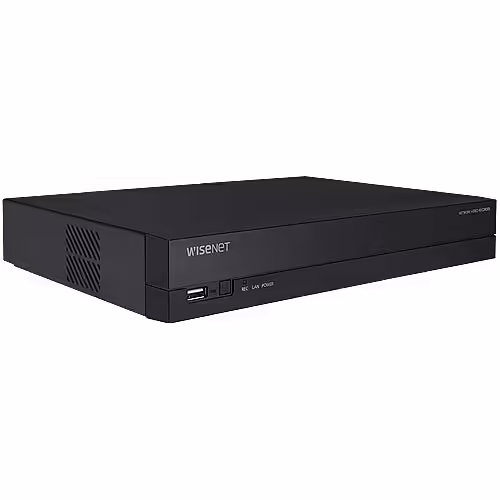

Hanwha 4 Channel NVR / ARN-410S / ADI Part# SQ-ARN410S2T

SKU: Hanwha 4 Channel NVR / ARN-410S Category:


  • Up to 4 channels @ 8MP resolution
  • H.265, H.264, MJPEG codec
  • 40Mbps network camera recording
  • Plug & play with 4 PoE ports
  • 1 HDD (Up to 6TB)
  • HDMI output
  • P2P service (QR code connect) for easy remote access with Wisenet Viewer & Wisenet Mobile
  • Dual track recording, 4K HDMI monitor out


Network camera
Network camera > Inputs Max. 4CH
Network camera > Resolution 8MP ~ CIF
Network camera > Protocols SUNAPI, ONVIF
Decoding > Local Display HDMI
Decoding > Multi Screen Display [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4
Decoding > Resolution [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps)
Operating System
Operating System > Embedded Linux
Record > Compression H.265, H.264, MJPEG
Record > Recording Bandwidth Max. 40Mbps
Record > Resolution 8MP ~ CIF
Record > Mode Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
Record > Event Trigger Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event
Record > Event Action e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search & Play
Search & Play > Playback Bandwidth Max. 32Mbps
Search & Play > User Max. 4 Users (Local 1, Remote 3)
Search & Play > Simultaneous playback Max. 16CH(Local 4CH, Remote 4CH per user)
Search & Play > Mode Date & Time(Calendar), Event list, Text Search, Smart Search
Search & Play > Resolution CIF ~ 8MP
Search & Play > Playback Control Fast/Slow Forward / Backward, Move one step Up / Down
Storage > Supported HDD Up to 6TB
Storage > HDD Slot SATA 1ea(Max. 6TB)
Backup > File backup BU/Exe(GUI), JPG/AVI(Network)
Backup > Function Multi channel(Up to 4CH) Play, Date-Time/Title display
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
Transmission Bandwidth Max. 40Mbps
Audio > Input/Output 4 CH(network)
Audio > Compression G.711, G.726, AAC(16/48KHz)
Audio > Audio Communication 2-Way
Max Remote Users Search(3), Live Unicast(10), Multicast(20)
Security IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
Web viewer
Web viewer > Supported OS Windows 10, macOS 10.13
Web viewer > Supported browser Google Chrome, Microsoft Edge, Mac Safari
Viewer Software WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3’rd party VMS
Camera Setup
Camera Setup > Register Auto, Manual
Camera Setup > Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ > Control Via GUI, Webviewer
PTZ > Preset 300 Presets
Smart phone
Smart phone > Support Model iOS, Android
Smart phone > Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
Smart phone > Control Live 4CH(Multi-Profile Support), Playback 4CH
Smart phone > Max. Remote Users Search(3), Live Unicast(10)
Redundancy > Failover N+1
Redundancy > ARB Support
Easy configuration P2P(QR code)
Front > Indicator Power, Record, Network
Reset Support
HDMI 1EA 3840×2160 30Hz
Ethernet PoE RJ-45(LAN, 10/100) 4 ea ,RJ-45 1ea (WAN, 10/100)
USB 2EA(Front 1 x USB 2.0, Rear 1 x USB 2.0)
Power inlet DC Adaptor
Log > Log List Max. 100,000 (System Log, Event Log each)
System Control Mouse, Web
Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
Operating Temperature 0°C to +40°C(32℉ to 104℉)
Operating Humidity 20% ~ 85% RH
Power Input 54VDC / 1.20A
Power Consumption Max 52W (1HDD, PoE On)
PoE Budget 35W
Color / Material Black / Metal
Dimension (WxHxD) W300.0 x H47 x D208.7mm (1U)
Weight 1.03Kg
