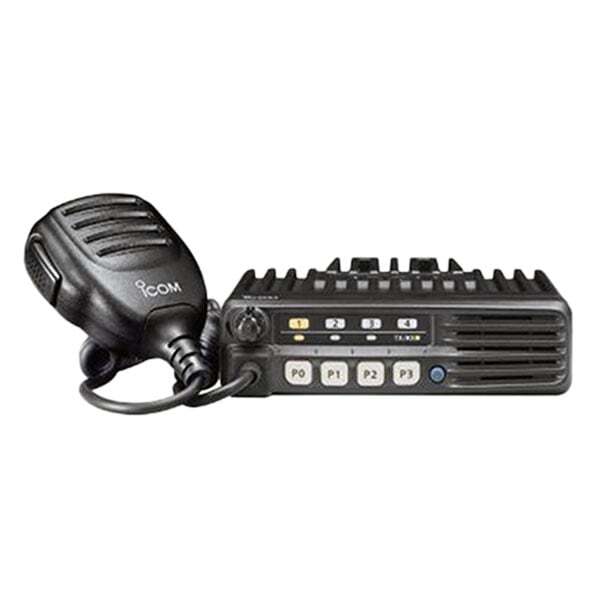

Icom F5011/F6011 Analog Mobile Radio

SKU: F5011/F6011 Category: Tag:

Icom F5011 | 50 Watts | VHF 136-174 MHz

Icom F6011 | 45 Watts | UHF 400-470 MHz 450-512 MHz

Brochure / Manual

Brochure

Description

Simple Operation, Versatile Functions & Rugged Construction for Your Day-to-Day Communication Needs

Simple Operation, Versatile Functions, and Rugged Construction for Your Day-to-Day Communication Needs
The F5011 Series is designed for everyday operation. This entry-level radio has everything needed to get started with 8 channels and P0-P3 programmable buttons, and it is perfect for industries such as education, agriculture, and distribution.

Simple Operation for Instant Communication

The IC-F5011 series has 8 channels. The P0-P3 programmable buttons allows you to customize the radio to suit your needs and convenience.

Most Popular Signalings Built-in

Use the built-in 2-Tone, 5-Tone, MDC 1200, CTCSS and DTCS capabilities as standard to set up your own talk groups and quiet stand-by when others are talking.

Multiple 2-Tone, Multiple 5-Tone

Up to ten 2-Tone or eight 5-Tone codes can be decoded on a channel. Features such as stun, kill, revive, answer back, auto TX, scan, audio output are programmable to respond to each tone.

MDC 1200 Compatible

The IC-F5011 series has a built-in MDC 1200 for transmitting a PTT ID and emergency* signal and for receiving radio check, stun and revive. Assimilate the radio easily into existing MDC 1200 systems.

* No ACK transmission

Enhanced Scan Features

The priority scan function allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talk back functions allow you to make a quick response while scanning.

Remote Channel Control with Optional ACC Cable

The optional ACC cable allows you to connect with various external devices to control audio output, modulated signal input, remote channel control, horn honk and many more functions. OPC-1939 is a D-SUB 15-pin type and OPC-2078 is a D-SUB 25-pin type.

Built Military Rugged

  • The IC-F5011 series is tested to MIL-STD 810 F specifications. The radio is built to survive harsh environment and keep working.

Other Features

  • 4W (typ.) front mounted speaker
  • Wide frequency coverage (136-174, 400-470 and 450-512MHz)
  • Microphone hanger action programmable
  • Optional DTMF microphone (HM-152T)
  • DTMF autodial function
  • PC programmable
  • Talk around function
  • Power-on password function
  • Nuisance delete function
  • Time-out-timer, lock-out penalty timer

General

IC-F5011 IC-F6011
Frequency coverage 136-174 MHz 400-470 MHz
450-512 MHz
Number of channels 8 channels
Channel spacing 12.5 kHz, 15 kHz 12.5 kHz
Type of emission 11K0F3E
Current drain
(approx.)		 Tx High
(50 W/45 W)		 10 A 11 A
Rx Stand-by 250 mA
Max. audio 700 mA
Dimensions
(projections not included; W×H×D)		 150×40×167.5 mm;
5.91×1.57×6.59 in
Weight 1.1 kg; 2.4 lb

Transmitter

IC-F5011 IC-F6011
RF output power 50 W, 25 W, 5 W
(Hi, L2, L1)		 45 W, 25 W, 4.5 W
(Hi, L2, L1)
Spurious emissions 70 dB (min.) 70 dB (typ.)
Frequency stability ±2.5 ppm
Audio harmonic distortion 3% typical
40% deviation
FM Hum and Noise 40 dB typ.

Receiver

IC-F5011 IC-F6011
Sensitivity at 12dB SINAD 0.25μV (typ.)
Adjacent channel selectivity 65 dB (typ.)
Spurious response rejection 70 dB min.
Intermodulation rejection 75 dB (typ.)
AF output power
(at 5% distortion with an 4Ω load)		 4 W (typ.)

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.



Standard MIL-810 G
Method Procedure
Low Pressure Storage 500.4 I
Low Pressure Operation 500.4 II
High Temperature Storage 501.4 I
High Temperature Operation 501.4 II
Low Temperature Storage 502.4 I
Low Temperature Operation 502.4 II
Temperature Shock 503.4 I
Solar Radiation 505.4 I
Humidity Induced 507.4 –
Settling Dust 510.4 III
Vibration 514.5 I
Shock Functional 516.5 I
Shock Transit Drop 516.5 IV

Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.

Supplied Accessories

  • Microphone, HM-152
  • Microphone hanger and its cable
  • Mounting bracket kit
  • DC power cable
  • Function name sticker

Additional information

Weight 2.4 lbs
Dimensions 6.59 × 5.91 × 1.57 in
