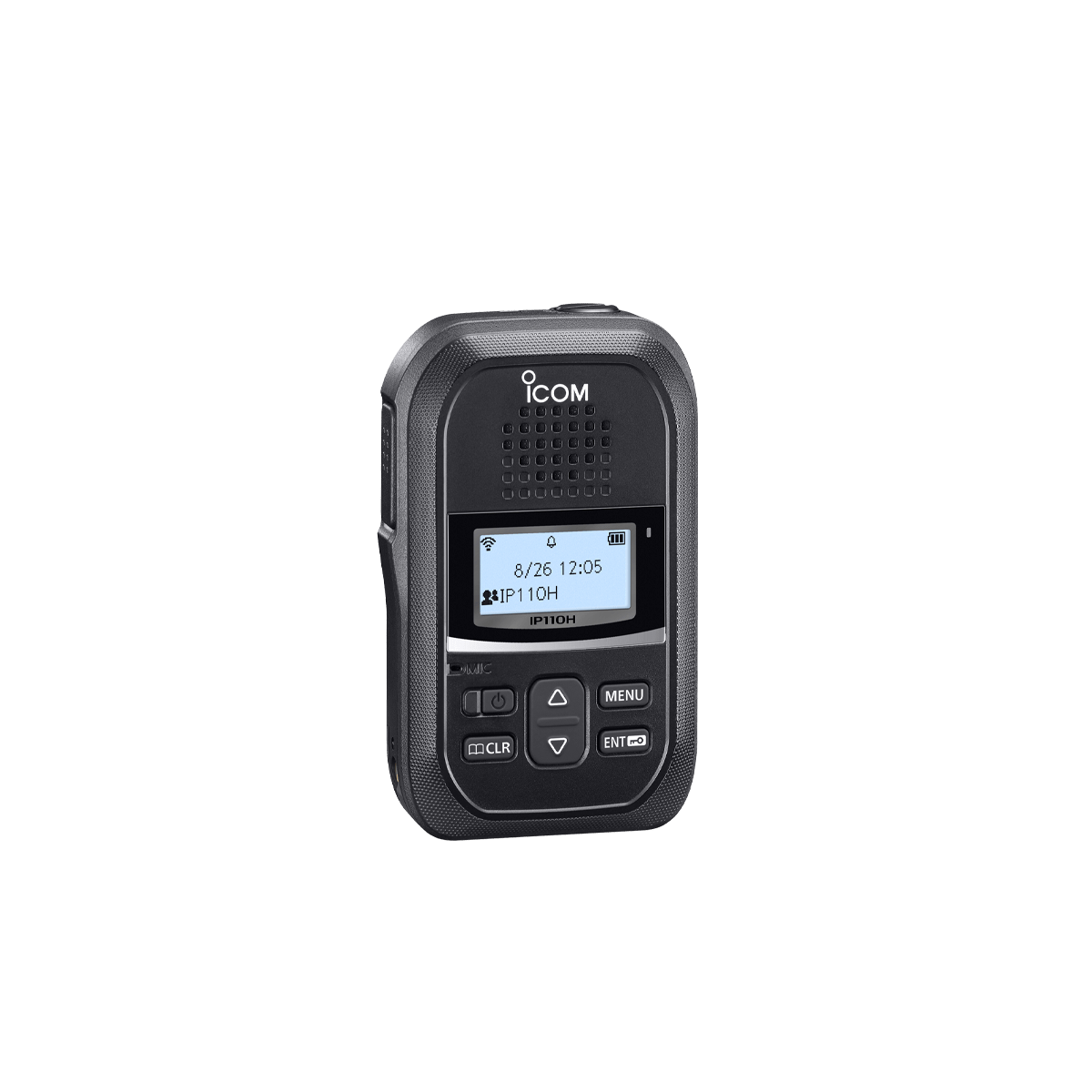

Icom IP110H WLAN License-Free Handheld Radio

SKU: IP110H Categories: , Tag:

Original Icom IP License-Free Handheld Radio | IP67 Waterproof | 6-Keys with Display | For Private Wireless Networks

Brochure / Manual

Brochure

Description

IP110H

Real-time Voice Communication Tool that Instantly Connects You with Your Team

Icom’s license-free IP110H WLAN radio provides real-time voice communications over a wireless network to instantly connect teams. The IP110H utilizes Icom’s IP advanced radio system to deliver clear audio and full-duplex communications. The IP110H is a perfect match for locations with existing WLAN infrastructure such as hospitals, hotels, warehouses, tunnels, and more.

Scalable System Using Wireless LAN Network

Deploying wireless access points over an IP network, the WLAN radio system can expand the communication range.

License-Free Communication

The WLAN radio uses common wireless LAN network frequencies, which do not need communication fees for running the system.

Communication with Dispersed Sites

When connected over the Internet VPN, an WLAN radios can communicate between dispersed sites.

Simultaneous TalkListen Function

The WLAN radio provides full duplex communication like a telephone conversation and one-to-many communication.
TalkListen works with or without external headset.

IP110H Features

・All, Group, Talkgroup, Individual and Telephone Calls

・1000 mW loud audio from internal speaker

・Optional Bluetooth® headset, VS-3

・IP67 / IP54 waterproof and dust-tight

・Battery can be charged through the USB Type-C™ cable

・More than 20 hours of operating time (Tx 1: Rx 1: Stand-by 8 duty ratio)

・WPA2, WPA-Enterprise security

・Other features

  • Audio is recorded for instant review
  • Vibration alert function
  • Motion/Stationary detection, man down and lone worker functions
  • Over-the-Air programming
  • Compatible with the IP100H WLAN radio

Specifications

IP110H
Wireless Standards IEEE802.11 a/b/g/n/ac
Frequency Range *1 2.4–2.4835 GHz, 5.15–5.35, 5.47–5.85 GHz
Security WEP (64/128-bit), WPA2-Enterprise, WPA-Enterprise, WPA-PSK, WPA2-PSK
AF Output Power 1000 mW typ. (Internal SP) / 300 mW typ. (External SP)
Operating Temperature –10°C to +60°C, +14°F to +140°F
Charging Temperature 0°C to + 60°C, + 32°F to + 140°F
Dimensions 57 × 96.9 × 25.1 mm, 2.2 × 3.8 × 1.0 in (W × H × D; Projections are not included)
Weight (approximate) 146 g, 5.2 oz
Operating Time More than 20 hours (TX 1 : RX 1 : Stand-by 8 duty ratio)
Charging Time 4 hours (With BC-257 and BC-228)
Supplied Accessories OPC-2480 USB charger cable, MBB-1 belt clip

*1 Authorized frequency range and channels may differ depending on the country.

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard MIL-810 G
Method Procedure
Low Pressure 500.5 I, II
High Temperature 501.5 I, II
Low Temperature 502.5 I, II
Temperature Shock 503.5 I-C
Solar Radiation 505.5 I
Rain Blowing/Drip 506.5 I, III
Humidity 507.5 II
Salt Fog 509.5 –
Dust Blowing 510.5 I
Immersion 512.5 I
Vibration 514.6 I
Shock 516.6 I, IV

Also meets equivalent MIL-STD-810 -C, -D, -E and -F.

Ingress Protection Standard
Dust & Water IP67 (Dust-tight and Immersion)
IP54 (Dust and Water resistant)



IP100FS＜Remote Communicator＞

System requirements

Operating System Windows™ 11, Windows™ 10 (32-bit/64-bit),
Windows™ 8.1 (32-bit/64-bit) (Except for Windows™ RT)
CPU Intel® Core™ 2 Duo Processor E6600/ 2.4 GHz or faster
System Memory 2 GB or more
Hard Disk Space 1 GB of disk space (for saving log files)
Display Resolution Full HD (1920×1080 pixel) recommended / XGA (1024×768 pixel) at least
LAN 100BASE-TX or faster Ethernet interface
USB USB1.1 / 2.0
Other Speaker, microphone or headset

All stated specifications are subject to change without notice or obligation.









Additional information

Weight 0.32 lbs
Dimensions 1 × 2.8 × 3.8 in
