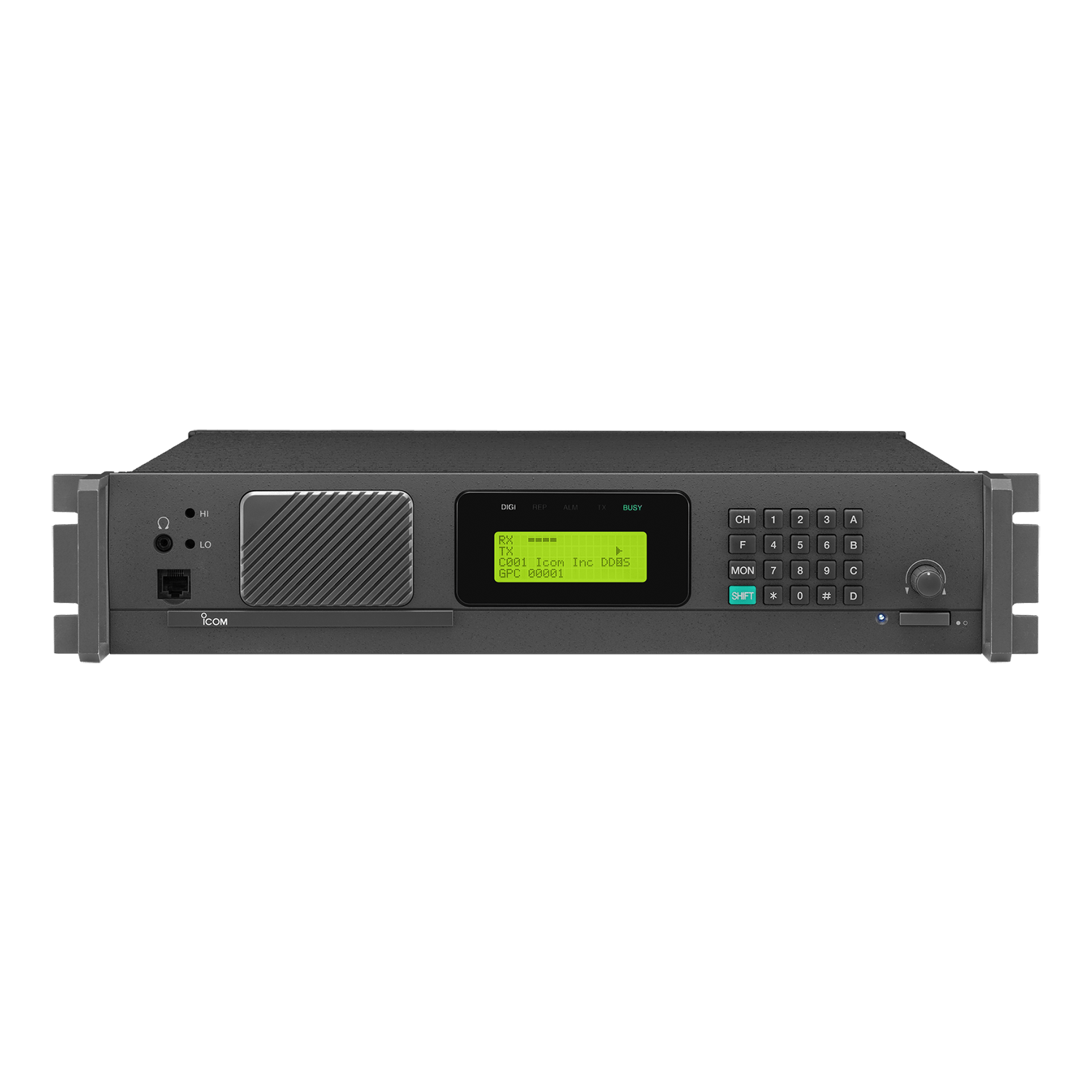

FR9020 Image Front

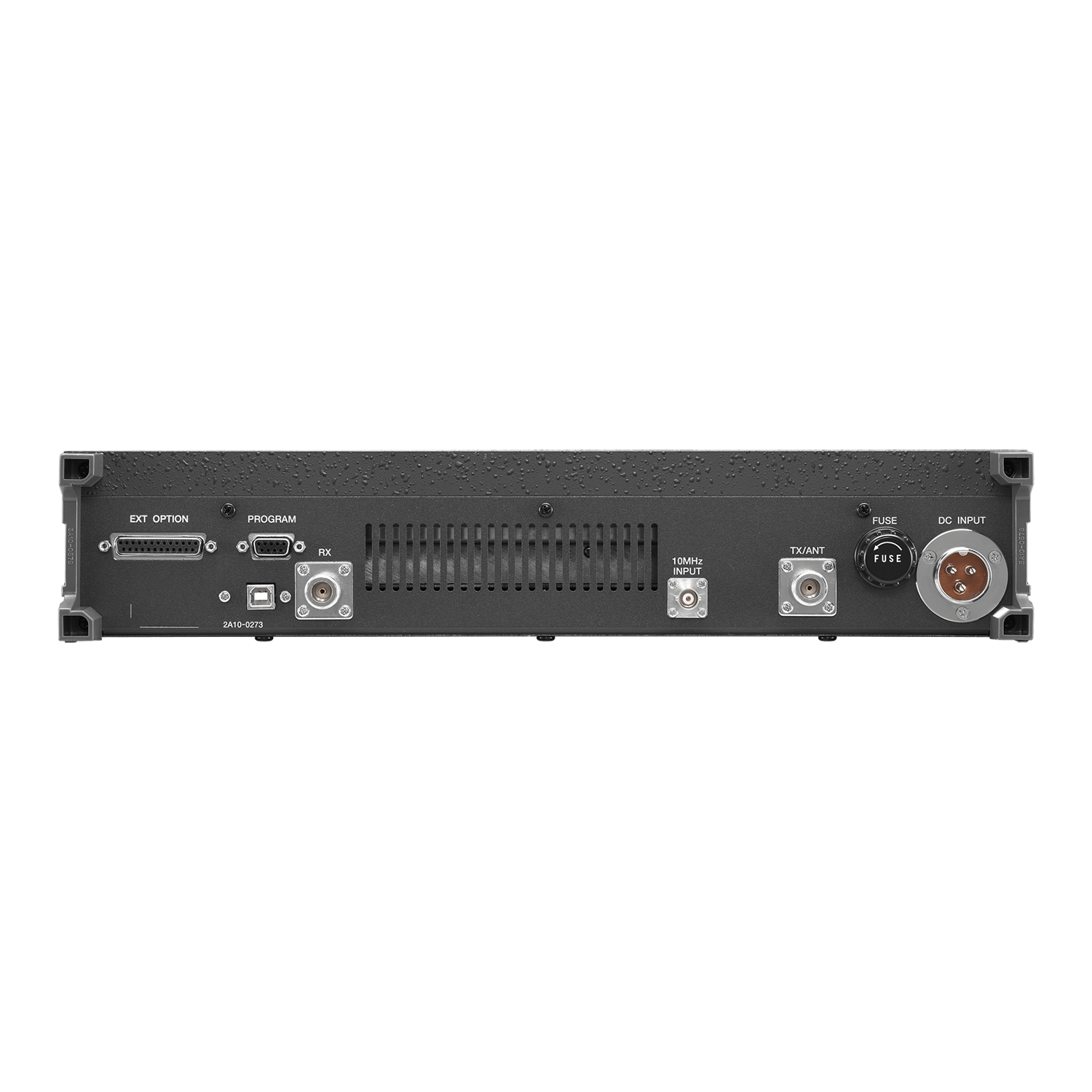

FR9020 Image Back

Original Icom FR9010/FR9020 P25 Digital Repeaters

SKU: FR9010 / FR9020 Category: Tags: , ,

Icom FR9010 P25 Digital | VHF 146-174 MHz | 110W

Icom FR9020 P25 Digital | UHF 440-475 MHz | 110W



Product Documents

Brochure

Description



110 W 100% Duty Cycle Operation

Employing a high performance power amplifier, together with the solid heatsink built into the chassis, the IC-FR9010 series provides a reliable 100% duty cycle operation at 110W* output.

* 110W for VHF, 100W for UHF.

P25 Conventional, Analog FM and Mixed Mode

The IC-FR9010 series is compatible with both analog FM mode and P25 digital mode. Program digital and/or analog FM modes per channel. The mixed mode operation allows you to receive both analog FM and P25 digital modes and to transmit either mode depending on the received signal.

500 Memory Channels Capacity

The 4×20-characters display, 16 key buttons, 500 memory channels and internal speaker allow you to use the repeater as a simple base station or to check repeater activity. The bar graph display shows the S-meter level and output power level.

P25 Conventional Base Mode

As a P25 conventional base mode, the following P25 functions are programmable. (Conventional base mode only)

  • Emergency
  • Call alert
  • Radio check
  • Radio inhibit (Stun)
  • Radio uninhibit (Revive)
  • Status update
  • Status request
  • SBC log (Call log)

D-SUB 25-pin Accessory Connector

The IC-FR9010 series has a programmable D-SUB 25-pin accessory connector for connecting external remote control devices. Also, modulation/demodulation signals can be input/output from the D-SUB connector.

Programmable CTCSS, DTCS and NAC

The IC-FR9010 series decodes analog CTCSS and DTCS and digital NAC (Network Access Code) on a per channel basis and downlinks these with the received signal when required.

Other Features

  • CW ID transmission
  • High reliability, rugged construction
  • ±1.5ppm frequency stability (Digital mode)
  • Low standby current (280mA)
  • P25 self-test mode and key test mode
  • Automatic error detection
  • 5 color LEDs
  • 2U low profile for rack mount

All other trademarks are the properties of their respective holders.

General

IC-FR9010 IC-FR9020
Frequency coverage
(Varies according to version)		 146–174MHz 440–475MHz
Number of channels Max. 500 channels
Channel spacing
(Varies according to version)		 12.5/20/25/30kHz*
Type of emission 16K0F3E*, 11K0F3E, 8K10F1E/F1D
Power supply requirement 13.6V DC nominal
Current drain
(at 13.6V DC)		 Tx High 16A 18A
Rx Stand-by 280mA
Max. audio 3A
Dimensions
(projections not included; W×H×D)		 482×88×413 mm ;
18.98×3.46×16.26 in
Weight (approx.) 11.0kg ; 24.3lb

Transmitter

IC-FR9010 IC-FR9020
RF output power
(100% duty cycle)		 High 110W 100W
Low 50W 50W
Spurious emissions 80dB min. 76dB min.
Max. frequency deviation ±5.0kHz/±2.5kHz (W/N)
Audio harmonic distortion 3% typ. (60% deviation)
FM hum and noise 55/50dB min. (W/N)

Receiver

IC-FR9010 IC-FR9020
Sensitivity at 12dB SINAD 0.30μV typ.
at 5% BER 0.30μV typ.
Adjacent channel selectivity 82/76dB min. (W/N)
55dB min. (Digital)		 80/72dB min. (W/N)
55dB min. (Digital)
Spurious response rejection 95dB min. (W/N)
83dB min. (Digital)		 85dB min. (W/N)
83dB min. (Digital)
Intermodulation rejection 79dB min. (W/N)
79dB min. (Digital)		 77dB min. (W/N)
77dB min. (Digital)
AF output power (at 5% distortion) 7.5W typ. with 8Ω load

* 25kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions.
Ask your dealer if you need 25kHz bandwidth.

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.



Standard MIL-810 G
Method Procedure
High Temperature Storage 501.5 I
High Temperature Operation 501.5 II
Low Temperature Storage 502.5 I
Low Temperature Operation 502.5 II
Vibration 514.6 I
Shock Functional 516.6 I

Also meets equivalent MIL-STD-810-C, -D, -E and -F.
All stated specifications are subject to change without notice or obligation.
