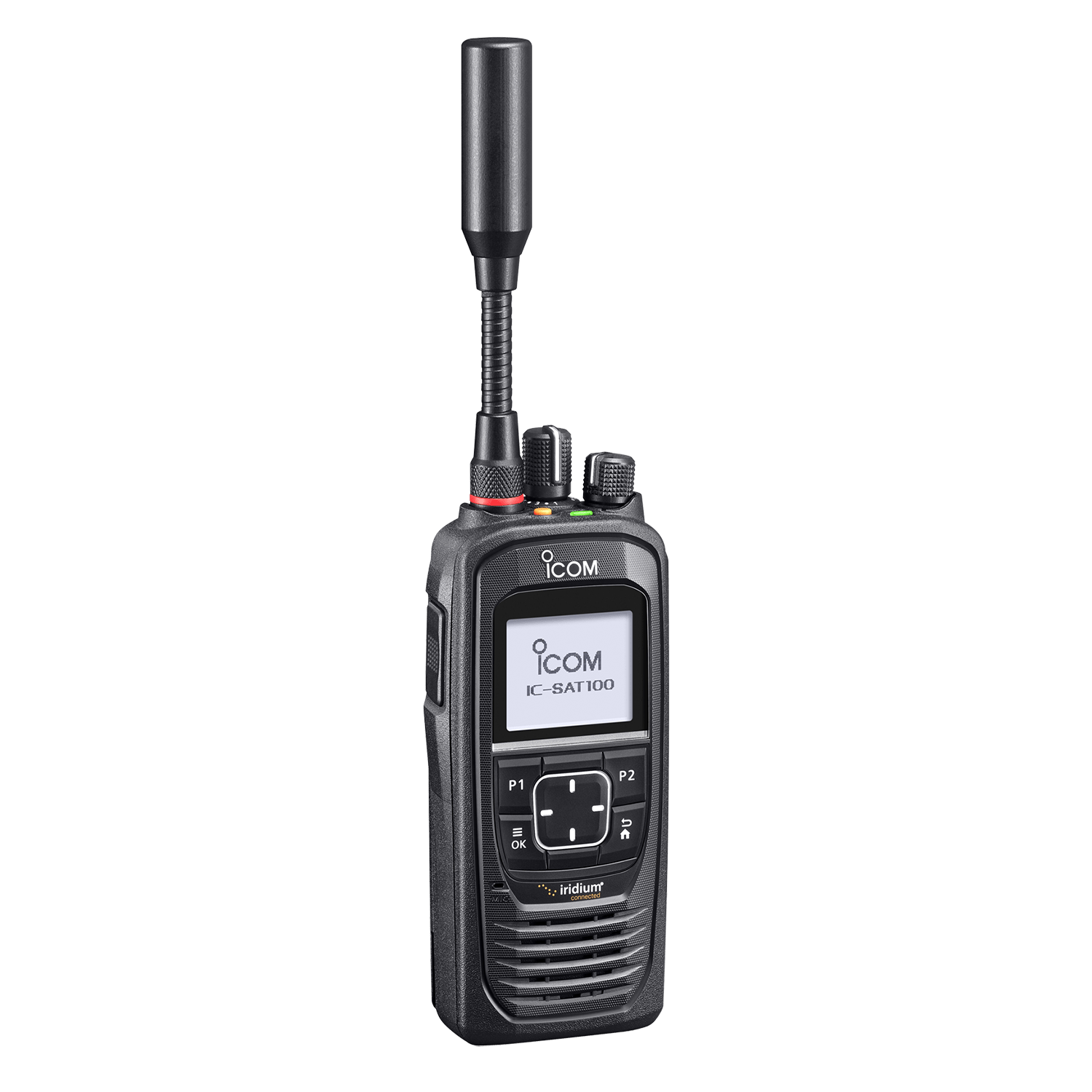

SAT100 Handheld by Icom for One-to-Many Satellite Communication

SKU: SAT100 Categories: ,

Icom IC-SAT100 provides One-to-Many Global Communication with Just a Push of a Button.

Brochure / Manual

Product Brochure

Request an Instant Quote

Description

What is SATELLITE PTT?

SATELLITE PTT (Push-To-Talk) is a two-way radio system that uses the Iridium® satellite network. It can be used as a communication tool in remote, isolated areas where there are no mobile phones or landline network infrastructure. Even if terrestrial network infrastructure is rendered unusable by human or natural disasters, SATELLITE PTT can provide a stable back-up, independent from other networks.
One-to-Many Communications

Unlike satellite phones, IC-SAT100 users can immediately start talking to all the radios in the same talk group, with just a push of the transmit (PTT) button.
Wide Area Global Communications

The Iridium® satellite network covers the entire earth, including both poles, and can provide wide area global communications anywhere on the planet*.

* Depending on the country or region, carrying and/or use of the IC-SAT100 may be prohibited.
Real-Time, Low-Latency Communication

Using 66 Low Earth Orbit (LEO) Iridium® satellites, the IC-SAT100 provides low-latency communication, and broader, more reliable network coverage, compared to Geosynchronous Equatorial Orbit (GEO) satellites.
Built-in Emergency Key

The orange key on the top panel can be used for emergency situations. You can transmit an emergency call to preprogrammed users with holding down the key.
Waterproof, Dust-tight and Durable Body

The IC-SAT100 provides IP67 waterproofing (1 m depth of water for 30 minutes) and dust-tight protection, making it ideal for use in harsh outdoor environments. The radio also meets MIL-STD 810G specifications. The operating temperature range is from –30°C to +60°C (–22 °F to 140 °F).
In-Vehicle or In-Building Use

With the AH-40 optional antenna, you can use the IC-SAT100 in the vehicle (by attaching it to the roof) or building (by placing outside a window). The IC-SAT100 has Bluetooth®* capability, and allows hands-free operation while driving.

* Version without Bluetooth also available. Ask us for details.
Conventional Radios and IP Phones Interconnection

With a VE-PG4 RoIP gateway, the IC-SAT100 can interconnect with an IP phone, IP, LTE, IDAS digital* and analog transceivers.

* Type-D multi-site trunking and conventional systems.



1500 mW Powerful Audio

1500 mW audio delivered from the internal speaker provides loud and clear communication, even in noisy environments.



Long Lasting Battery Life

The supplied BP-300 Li-ion battery pack provides 14.5 hours of operation.
* Approximate. Operating periods are calculated under the following conditions. TX : RX : standby = 5 : 5 : 90



Private Conversation

The IC-SAT100 provides secure conversations with AES 256-bit encryption.



Other Features

  • Short Data Message function
  • Voice Recording function
  • Multiple language display (English, Chinese, French, German, Japanese, and Spanish)
  • Built-in Bluetooth® (*Version without Bluetooth also available. Ask us for details.)
  • Integrated GPS receiver shows a received position information on the display
  • SMA type antenna connector for an external antenna
  • AquaQuake™ function clears any water ingress that may penetrate the speaker grill of the unit
  • USB charging (USB Micro-B type)



Specifications

Dimensions 57.8 × 135 × 32.8 mm, 2.3 × 5.3 × 1.3 in
Weight (approximate) 360g, 12.7 oz (with BP-300 and antenna)
Display (W × H, approximate) 33 × 27 mm, 1.3 × 1.1 in (viewing area)
Operational temperature range –30°C to +60°C, –22 °F to 140 °F
Audio output power:
Internal SP
External SP		 1500 mW typical (At 5% distortion into an 8 Ω load)
1000 mW typical (At 5% distortion into an 8 Ω load)
Battery life (Approximate) 14.5 hours (TX : RX : standby = 5 : 5 : 90)
Talkgroup 15 groups (Maximum)
Antenna connector SMA
IP Rating IP67
*Measurements made in accordance with FCC 47 CFR Part25 & 2, Canada RSS-170&RSS-GEN, EN. All stated specifications are subject to change without notice or obligation.

*Operating time may differ depending on operating environments. All stated specifications are subject to change without notice or obligation.

All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications

Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.

Standard MIL 810 G
Method Proc
Low Pressure 500.5 I, II
High Temp. 501.5 I, II
Low Temp. 502.5 I, II
Temp. Shock 503.5 I-C
Solar Radiation 505.5 I
Rain Blowing/Drip 506.5 I, III
Dust Blowing 510.5 I
Immersion 512.5 I
Vibration 514.6 I
Shock 516.6 I, IV

Also meets equivalent MIL-STD-810-C, -D, -E and -F.

Supplied Accessories

  • BP-300 Battery Pack
  • BC-241 Desktop Charger
  • BC-242 AC Adapter
  • FA-S102U Antenna
  • MBB-5 Belt Clip

Additional information

Weight 0.79 lbs
Dimensions 2.3 × 5.3 × 1.3 in
