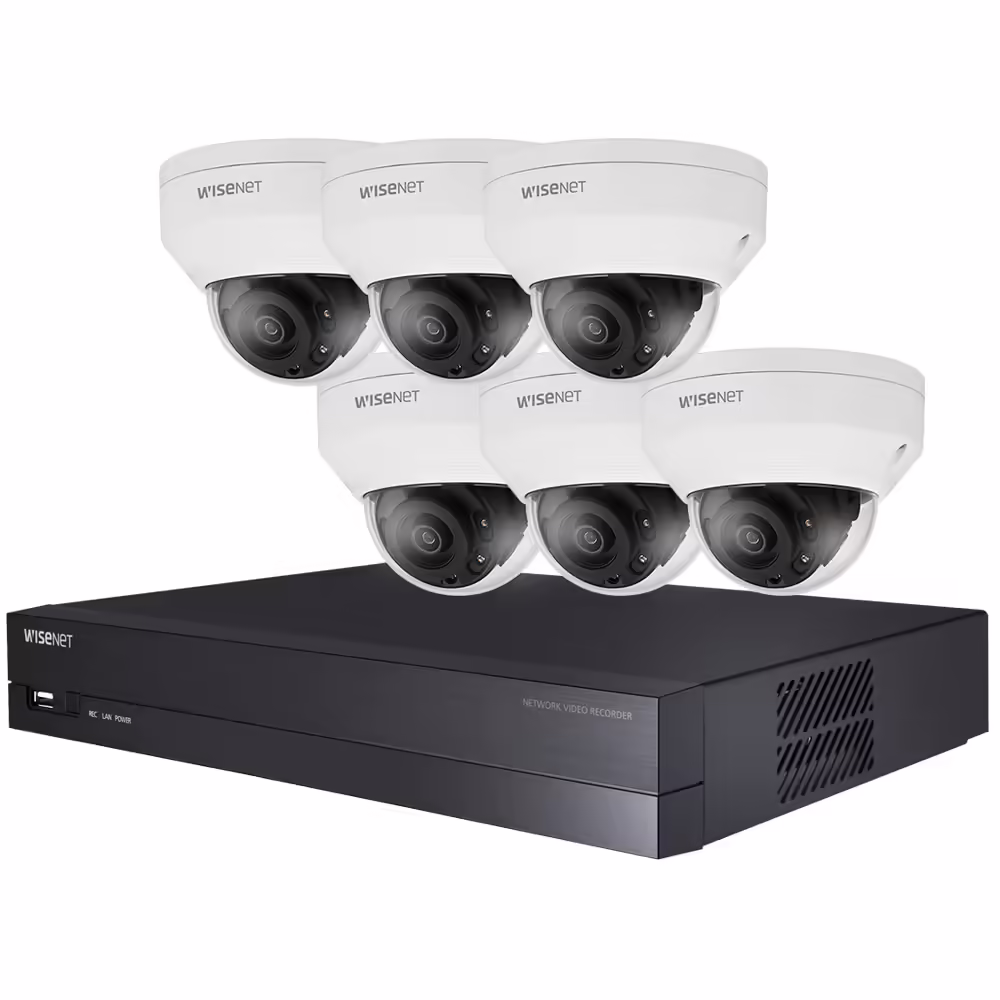

Camera and Recorder Bundle

Security Camera Bundle

Category:

Request an Instant Quote

Description

Hanwha 2MP Fixed 3.3MM Dome Camera / ANV-L7012R

  • 4MP resolution, Up to 30fps(H.265/H.264)
  • Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
  • 3mm lens with 107.5° HFoV
  • IR viewable length: 20m
  • Day & Night (ICR), WDR (120dB)
  • H.265, H.264, MJPEG, Multiple streaming supported
  • Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
  • Hallway view (90⁰/270⁰), LDC support, WiseStream II
  • Micro SD/SDHC/SDXC memory slot
  • IP66, IK10



Specifications

Video
Imaging Device 1/3″ CMOS
Resolution 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate H.265/H.264 : Max. 30fps at 4M all resolutions MJPEG : Max. 15fps
Min. Illumination Color : 0.13Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED On)
Lens
Focal Length (Zoom Ratio) 3mm fixed focal
Max. Aperture Ratio F1.6
Angular Field of View H: 98.3° / V: 54.2° / D: 114.6°
Min. Object Distance 1.1m(3.6ft)
Focus Control Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0° ~ 350° / 0° ~ 67° / 0° ~ 355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum/Maximum/Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
Alarm Triggers Analytics, Network disconnect * Alarm input(with NW I/O Box)
Alarm Events File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Handover
IR Viewable Length 20m(65.62ft)
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression H.265/H.264 : Main/High, MJPEG
Smart Codec Manual (5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265 : CBR or VBR MJPEG : VBR
Streaming Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication
Application Programming Interface ONVIF Profile S/G/T, SUNAPI (HTTP API)
General
Webpage Language English
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Memory 512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH
Storage Temperature / Humidity -30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH
Certification IP66, IK10
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption Max 7.5W, typical 5.7W
Mechanical
Color / Material White / Plastic, Aluminum
RAL Code RAL9003
Product Dimensions / Weight Ø120.3×91.7mm(Ø4.74×3.61″), 410g
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 44.3m(145.25ft)
Observe (63PPM/ 19PPF) 17.7m(58.10ft)
Recognize (125PPM/ 38PPF) 8.9m(29.05ft)
Identify (250PPM/ 76PPF) 4.4m(14.53ft)





Hanwha 8 Channel NVR / ARN-810S / ADI Part# SQ-ARN810S2T

  • Up to 8 channels, 8 megapixel supported
  • H.265, H.264, MJPEG codec supported
  • 60Mbps network camera recording
  • Plug & play with 8 PoE+ ports, 65W budget
  • Maximum 1 HDD (up tp 6Tb) supported
  • HDMI local monitor
  • P2P service (QR code connect) for easy remote access with Wisenet Viewer & Wisenet Mobile
  • Dual track recording, 4K HDMI monitor out



Specifications

Display
Network camera
Network camera > Inputs Max. 8CH
Network camera > Resolution 8MP ~ CIF
Network camera > Protocols SUNAPI, ONVIF
Decoding
Decoding > Local Display HDMI
Decoding > Multi Screen Display [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9
Decoding > Resolution [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps)
Performance
Operating System
Operating System > Embedded Linux
Record
Record > Compression H.265, H.264, MJPEG
Record > Recording Bandwidth Max. 60Mbps
Record > Resolution 8MP ~ CIF
Record > Mode Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
Record > Event Trigger Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event
Record > Event Action e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search & Play
Search & Play > Playback Bandwidth Max. 32Mbps
Search & Play > User Max. 4 Users (Local 1, Remote 3)
Search & Play > Simultaneous playback Max. 16CH(Local 4CH, Remote 4CH per user)
Search & Play > Mode Date & Time(Calendar), Event list, Text Search, Smart Search
Search & Play > Resolution CIF ~ 8MP
Search & Play > Playback Control Fast/Slow Forward / Backward, Move one step Up / Down
Storage
Storage > Supported HDD Up to 6TB
Storage > HDD Slot SATA 1ea(Max. 6TB)
Backup
Backup > File backup BU/Exe(GUI), JPG/AVI(Network)
Backup > Function Multi channel(Up to 4CH) Play, Date-Time/Title display
Network
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS Hanwha DDNS
Transmission Bandwidth Max. 60Mbps
Audio
Audio > Input/Output 8 CH(network)
Audio > Compression G.711, G.726, AAC(16/48KHz)
Audio > Audio Communication 2-Way
Max Remote Users Search(3), Live Unicast(10), Multicast(20)
Security IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
Web viewer
Web viewer > Supported OS Windows 10, macOS 10.13
Web viewer > Supported browser Google Chrome, Microsoft Edge, Mac Safari
Viewer Software WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3’rd party VMS
Functions
Camera Setup
Camera Setup > Register Auto, Manual
Camera Setup > Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
PTZ > Control Via GUI, Webviewer
PTZ > Preset 300 Presets
Smart phone
Smart phone > Support Model iOS, Android
Smart phone > Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
Smart phone > Control Live 4CH(Multi-Profile Support), Playback 4CH
Smart phone > Max. Remote Users Search(3), Live Unicast(10)
Redundancy
Redundancy > Failover N+1
Redundancy > ARB Support
Easy configuration P2P(QR code)
Interface
Front
Front > Indicator Power, Record, Network
Reset Support
HDMI 1EA 3840×2160 30Hz
Ethernet PoE RJ-45(LAN, 10/100) 8 ea ,RJ-45 1ea (WAN, 1Gbps)
USB 2EA(Front 1 x USB 2.0, Rear 1 x USB 2.0)
Power inlet DC Adaptor
System
Log
Log > Log List Max. 100,000 (System Log, Event Log each)
System Control Mouse, Web
Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
Operating Temperature 0°C to +40°C(32℉ to 104℉)
Operating Humidity 20% ~ 85% RH
Electrical
Power Input 54VDC / 1.67A
Power Consumption Max 84W (1HDD, PoE On)
PoE Budget 65W
Mechanical
Color / Material Black / Metal
Dimension (WxHxD) W300.0 x H47 x D208.7mm (1U)
Weight 1.05Kg
