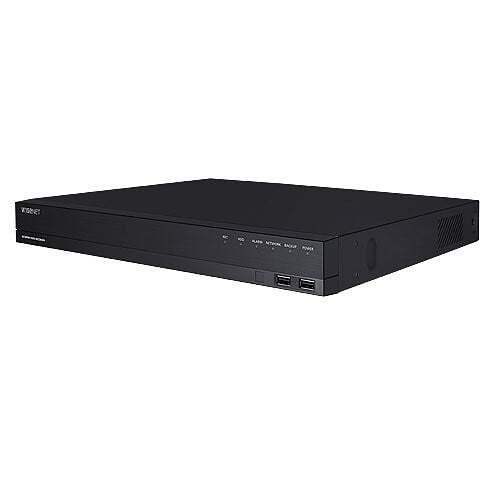

Hanwha 16 Channel NVR / ARN-1610S / ADI Part# SQ-ARN1610S4

SKU: Hanwha 16 Channel NVR / ARN-1610S Category:


Description

  • Up to 16 channels @ 8 megapixel supported
  • H.265, H.264, MJPEG codec supported
  • 80Mbps network camera recording
  • Plug & play by 16 PoE ports
  • Maximum 2 HDDs (up to 6Tb each) supported
  • HDMI/VGA local monitor
  • P2P service (QR code connect) for easy remote access with Wisenet Viewer & Wisenet Mobile



Specifications

Display
Network camera
Network camera > Inputs Max. 16CH
Network camera > Resolution 8MP ~ CIF
Network camera > Protocols SUNAPI, ONVIF
Decoding
Decoding > Local Display HDMI, VGA(Clone)
Decoding > Multi Screen Display [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9
Decoding > Resolution [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps)
Performance
Operating System
Operating System > Embedded Linux
Record
Record > Compression H.265, H.264, MJPEG
Record > Recording Bandwidth Max. 80Mbps
Record > Resolution 8MP ~ CIF
Record > Mode Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
Record > Event Trigger Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event
Record > Event Action e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search & Play
Search & Play > Playback Bandwidth Max. 32Mbps
Search & Play > User Max. 4 Users (Local 1, Remote 3)
Search & Play > Simultaneous playback Max. 16CH(Local 4CH, Remote 4CH per user)
Search & Play > Mode Date & Time(Calendar), Event list, Text Search, Smart Search
Search & Play > Resolution CIF ~ 8MP
Search & Play > Playback Control Fast/Slow Forward / Backward, Move one step Up / Down
Storage
Storage > Supported HDD Up to 6TB
Storage > HDD Slot SATA 2ea(Max. 12TB)
Backup
Backup > File backup BU/Exe(GUI), JPG/AVI(Network)
Backup > Function Multi channel(Up to 4CH) Play, Date-Time/Title display
Network
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS Hanwha DDNS
Transmission Bandwidth Max. 80Mbps
Audio
Audio > Input/Output 16 CH(network)
Audio > Compression G.711, G.726, AAC(16/48KHz)
Audio > Audio Communication 2-Way
Max Remote Users Search(3), Live Unicast(10), Multicast(20)
Security IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
Web viewer
Web viewer > Supported OS Windows 10, macOS 10.13
Web viewer > Supported browser Google Chrome, Microsoft Edge, Mac Safari
Viewer Software WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3’rd party VMS
Functions
Camera Setup
Camera Setup > Register Auto, Manual
Camera Setup > Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
PTZ > Control Via GUI, Webviewer
PTZ > Preset 300 Presets
Smart phone
Smart phone > Support Model iOS, Android
Smart phone > Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
Smart phone > Control Live 4CH(Multi-Profile Support), Playback 4CH
Smart phone > Max. Remote Users Search(3), Live Unicast(10)
Redundancy
Redundancy > Failover N+1
Redundancy > ARB Support
Easy configuration P2P(QR code)
Interface
Front
Front > Indicator Power, Record, Network
Reset Support
HDMI 1EA 3840×2160 30Hz
VGA 1920×1080 30Hz
Ethernet PoE RJ-45(LAN, 10/100) 16 ea ,RJ-45 1ea (WAN, 1Gbps)
USB 2EA(Front 2 x USB 2.0)
Power inlet SMPS
System
Log
Log > Log List Max. 100,000 (System Log, Event Log each)
System Control Mouse, Web
Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
Operating Temperature 0°C to +40°C(32℉ to 104℉)
Operating Humidity 20% ~ 85% RH
Electrical
Power Input 100 ~ 240 VAC ±10%; 50/60 Hz
Power Consumption Max 188.2W (2HDD, PoE On)
PoE Budget 130W
Mechanical
Color / Material Black / Metal
Dimension (WxHxD) W370.0 x H44.0 x D320 mm (14.57″ x 1.73″ x 12.6″) (1U)
Weight 2.88Kg
