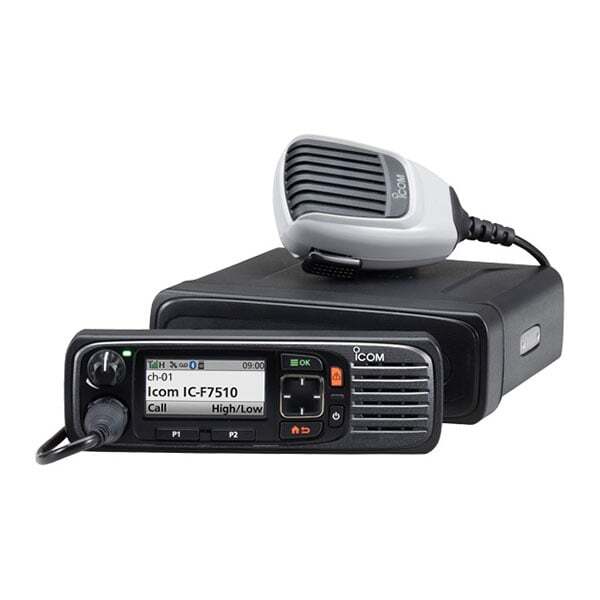

Icom F7510 / F7520 / F7540 P25 Conventional & Analog Mobiles
Icom F7510 VHF P25 Mobile 136-174 MHz
Icom F7520 VHF P25 Mobile 380-470 MHz 450-512 MHz
Icom F7540 700/800 MHz P25 Mobile 769-775 MHz 851-869 MHz
Brochure / Manual
Brochure
Description
Great Choice for Public Organizations
Rugged P25 Mobile Radio, Phase 1 and 2
Color LCD and Enhanced User Interface
A high-resolution color LCD screen improves visibility in both natural and indoor lighting conditions. The night mode LCD setting can used in low-lighting or nighttime conditions. Functions can be easily set by following intuitive icons and menu items. Functions and menu items can be configured in languages other than English, such as French, Spanish, Russian, and Traditional Chinese.
MIL-STD-810 and IP55 Specifications
The IC-F7500 series has been tested to meet U.S. MIL-STD-810 G environmental tests and has a dust protection and water jet resistance rating of IP55. It can be used with peace of mind exposed to rain or splashing water, or in dusty conditions such as outside operation.
Bluetooth® Technology Enables Wireless Operation
The built-in Bluetooth® unit provides a wireless connection with an optional Bluetooth® headset or external Bluetooth® equipment. It also has a VOX function that enables automatic voice transmission in response to your voice, allowing hands-free operation. In addition, third-party wireless Bluetooth® headset (Like a 3M™ Peltor™ WS™ 5) can be used with the radio. Wireless radio programming over Bluetooth® also possible.
Bluetooth® connection has not been tested for all Bluetooth® compatible devices with this product. This does not guarantee that all devices will work with this product.
microSD Card Slot for Voice and Data Storage
The IC-F7500 series has a microSD card* slot for data storage. Call record (transmitted and received) audio, GPS log, memory channel settings and firmware file can all be saved onto the microSD card.
*A microSD/microSDHC is required (up to 32 GB).
USB Connector for PC Connection
The P25 radio can be connected to a PC via a USB (micro-B) port, allowing for data transfer mode, or accessing the installed microSD card in mass storage mode.
D-SUB 25-pin Accessory Connector
The P25 radio has a programmable D-SUB 25-pin accessory connector for connecting external devices. External PTT, channel mode, horn, PA (public address), RX speaker, ignition switch and dimmer control are programmable.
Detached Controller
A detached controller head with the separated RF unit is a simple to install in almost any vehicle.
| Categories | Model Name | Quantity |
|---|---|---|
| Separation kit | RMK-5 | 1 |
| Separation cable | OPC-2364 (1.9 m, 6.2 ft) OPC-2365 (3 m, 9.8 ft) OPC-2366 (5 m, 16.4 ft) OPC-2367 (8 m, 26.2 ft) | 1 |
| Microphone | HM-220 (IP54) HM-220T (IP54, with DTMF) HM-221 (IP55) HM-221T (IP55, with DTMF) | 1 |

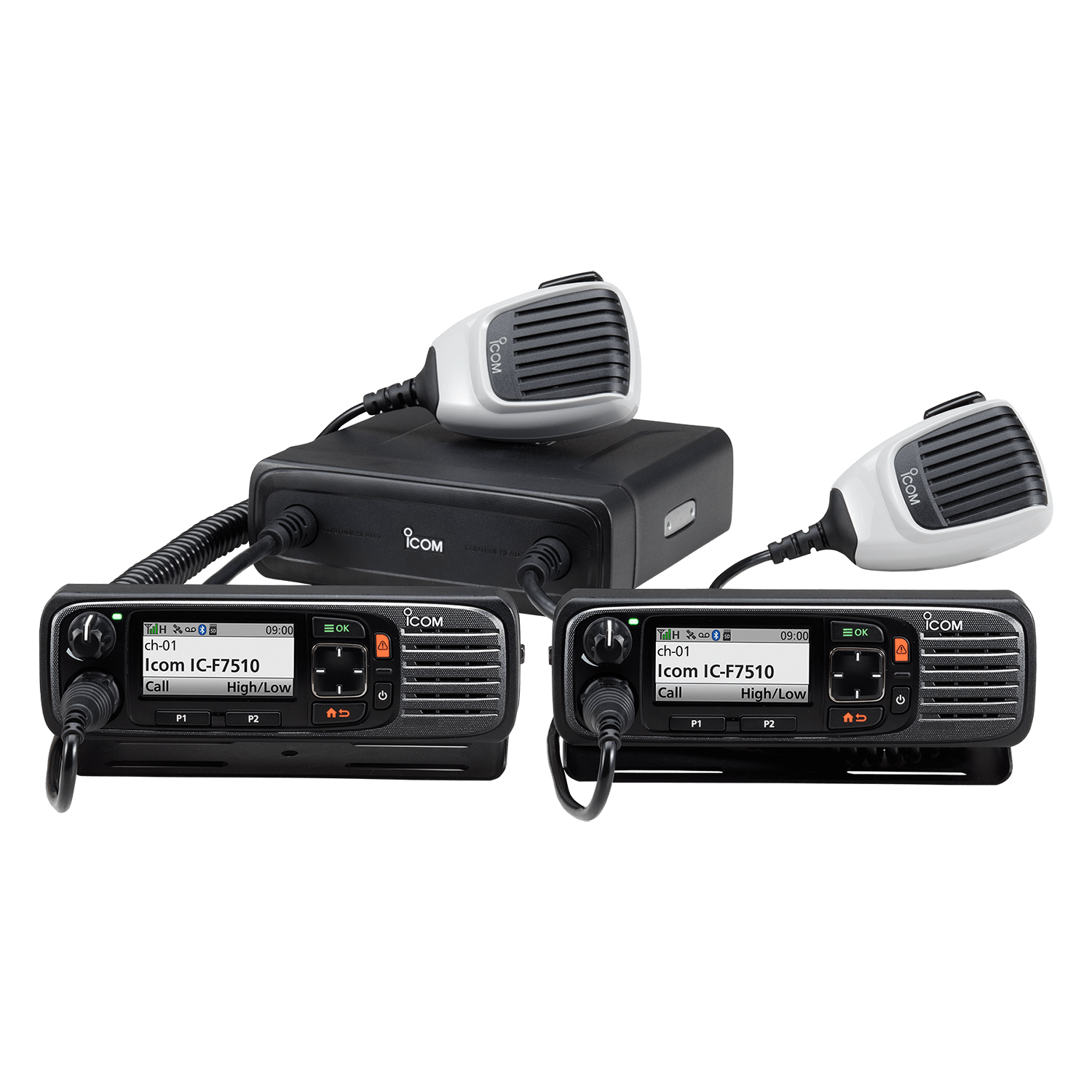

Dual Head Controller
Suitable for double cab vehicles. Install the controller head to front and rear seats respectively.
The intercom function is available between controllers.
| Categories | Model Name | Quantity |
|---|---|---|
| Separation kit | RMK-7 | 1 |
| Separation cable | OPC-2364 (1.9 m, 6.2 ft) OPC-2365 (3 m, 9.8 ft) OPC-2366 (5 m, 16.4 ft) OPC-2367 (8 m, 26.2 ft) | 2 |
| Microphone | HM-220 (IP54) HM-220T (IP54, with DTMF) HM-221 (IP55) HM-221T (IP55, with DTMF) | 2 |
CommandMic™ and Detached Controller
The CommandMic is handy for installing a work platform on the rear part of the vehicle.
The intercom function is available between controller and CommandMic.
| Categories | Model Name | Quantity |
|---|---|---|
| Separation kit | RMK-7 | 1 |
| Separation cable (for RMK-7) | OPC-2364 (1.9 m, 6.2 ft) OPC-2365 (3 m, 9.8 ft) OPC-2366 (5 m, 16.4 ft) OPC-2367 (8 m, 26.2 ft) | 1 |
| Microphone | HM-220 (IP54) HM-220T (IP54, with DTMF) HM-221 (IP55) HM-221T (IP55, with DTMF) | 1 |
| CommandMic™ | HM-218 (IP55) | 1 |
| Separation cable (for HM-218) | OPC-2373 (1.9 m, 6.2 ft) OPC-2374 (8 m, 26.2 ft) | 1 |
Other Features
- 136~174, 380~470, 450~512, and 700/800 MHz versions
- 1024 channels / 128 zones
- Large sized functions and four-direction buttons
- DTMF autodial
- Low voltage alert
- Programmable ringer beep
- Internal clock with time auto adjustment
Voice, Audio and Emergency Features
Customizable Audio Quality
P25 radios also implement audio features and settings to compliment the performance of the vocoder.
| Functions | Features |
|---|---|
| Voice Recording/Playback | This function records incoming and outgoing calls in WAV format. Various communication data is embedded in the WAV file, such as User IDs, GPS position, frequency, etc. Up to 500 hours can record to a 32 GB microSD card (user supplied). |
| TX/RX Audio Equalizer | This function can improve the audio readability by increasing or decreasing particular audio frequency components. (Flat, high/mid/low boost, low cut) |
| AF Volume Equalizing | This function adds high-pass filter to provide clear, intelligible audio, when increases the volume |
| TX/RX Active Noise Canceller | This function suppresses background noise and improves both transmitted voice and incoming calls. |
Emergency Call and Alert
To ensure users safety, P25 handheld radios have the following four emergency related functions. If one of these functions are activated, the radio automatically sends an emergency signal.
| Functions | Features |
|---|---|
| Emergency Button | When pressed the Emergency button, the P25 radio automatically transmits an emergency call once or repeatedly. |
| Lone Worker | When no operation is performed for the specified time period, the radio enters the Emergency mode. |
| Power OFF emergency | This function makes the radio transmit Emergency calls, even though it appears to be powered OFF. |
Other Features
- Voice announcement (channel number and zone)
- Adjustable analog and digital volume level
General
| IC-F7510 | IC-F7520 | IC-F7540 | ||
|---|---|---|---|---|
| Frequency coverage* (* Depending on version) | 136 ~ 174 MHz | 380 ~ 470, 450 ~ 512 MHz | USA 769 ~ 775 MHz (RX/TX), 799 ~ 805 MHz (TX), 806 ~ 824 MHz (TX), 851 ~ 869 MHz (RX/TX)EXP 764 ~ 776 MHz (RX/TX), 794 ~ 806 MHz (TX), 806 ~ 825 MHz (TX), 851 ~ 870 MHz (RX/TX) | |
| Number of channels | 1024 channels /128 zones | |||
| Type of emission* (* Depending on version) | 16K0F3E*, 11K0F3E, 8K50F3E, 8K10F1E/F1D, 8K10F1W * 25 kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions. | 16K0F3E, 14K0F3E, 11K0F3E, 8K50F3E, 8K10F1E/F1D, 8K10F1W | ||
| Power supply requirement | 13.6 V DC nominal | |||
| Current drain (approx.) | Tx | 14.0 A (at 50 W) | 14.0 A (at 45 W) | 14.0 A (at 35 W) |
| Rx | 1.2 A /400 mA (Max. audio (external SP)/Standby) | |||
| Antenna impedance | 50 Ω | |||
| Operating temperature range | −30 °C to +60 °C, −22 °F to +140 °F | |||
| Dimensions (W × H × D; Projections not included) | 174 × 55 × 150 mm, 6.9 × 2.2 × 5.9 in | |||
| Weight (approx.) | 1500 g, 3.3 lb | |||
Transmitter
| IC-F7510 | IC-F7520 | IC-F7540 | |
|---|---|---|---|
| Output power (Hi, L2, L1) | 50 W, 25 W, 5 W | 45 W, 25 W, 5 W | USA 30 W, 15 W, 2 W (769 ~ 775, 799 ~ 805 MHz), 35 W, 15 W, 2 W (806 ~ 824, 851 ~ 869 MHz)EXP 30 W, 15 W, 2 W (764 ~ 776, 794 ~ 806 MHz), 35 W, 15 W, 2 W (806 ~ 825, 851 ~ 870 MHz) |
| Frequency stability | ±1.0 ppm | ||
| Spurious emissions | 80 dB typ. | ||
| FSK error | 1% typ. (C4FM), 3% typ. (H-CPM) | ||
| Maximum frequency deviation | ±5.0 kHz (@25 kHz), ±2.5 kHz (@12.5 kHz) | ±5.0 kHz (@25 kHz), ±4.0 kHz (@20 kHz), ±2.5 kHz (@12.5 kHz) | |
| FM Hum and noise | 55 dB typ. | ||
| Audio harmonic distortion | 0.5% typ. (AF 1 kHz, 40% deviation) | ||
Receiver
| IC-F7510 | IC-F7520 | IC-F7540 | ||
|---|---|---|---|---|
| Sensitivity | Digital (5% BER) | 0.22 μV typ. (@C4FM, H-DQPSK) | 0.22 μV typ. (@C4FM, H-DQPSK) | 0.22 μV typ. (@C4FM, H-DQPSK) |
| Analog (12 dB SINAD) | 0.22 μV typ. (@25/12.5 kHz) | 0.22 μV typ. (@25/12.5 kHz) | 0.22 μV typ. (@25/20/12.5 kHz) | |
| Adjacent channel selectivity | Digital | 63 dB typ. (@C4FM, TIA-102) 63 dB typ. (@H-DQPSK, TIA-102) | 63 dB typ. (@C4FM, TIA-102) 60 dB typ. (@H-DQPSK, TIA-102) | 65 dB typ. (@C4FM, TIA-102) 63 dB typ. (@H-DQPSK, TIA-102) |
| Analog | 80/57 dB typ. (@25/12.5 kHz, TIA-603B), 80/76 dB typ. (@25/12.5 kHz, TIA-603) | 75/57 dB typ. (@25/12.5 kHz, TIA-603B), 75/75 dB typ. (@25/12.5 kHz, TIA-603) | 75/70/57 dB typ. (@25/20/12.5 kHz, TIA-603B), 75/70/68 dB typ. (@25/20/12.5 kHz, TIA-603) | |
| Spurious response rejection | 80 dB typ. | 80 dB typ. | 80 dB typ. | |
| Intermodulation rejection | Digital | 77 dB typ. | 75 dB typ. | 75 dB typ. |
| Analog | 77 dB typ. | 75 dB typ. | 75 dB typ. | |
| Audio output power | Internal SP | 4.0 W typ. (at 5% distortion with 4 Ω load) | ||
| External SP | 4.0 W typ. (at 5% distortion with 4 Ω load) | |||
Measurements made in accordance with TIA-102 (P25), TIA-603 (FM Wide/narrow).
All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications & IP Rating
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard | MIL-810 G | |
|---|---|---|
| Method | Procedure | |
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D -E and -F.
| Ingress Protection Standard | |
|---|---|
| Dust & Water | IP55 (Dust-protection and water jet resistance) |
Some functions and options will be available in the future.
Supplied Accessories
- Hand microphone, HM-220
- DC power cable, OPC-1132A
- Mounting bracket kit
- Microphone hanger
