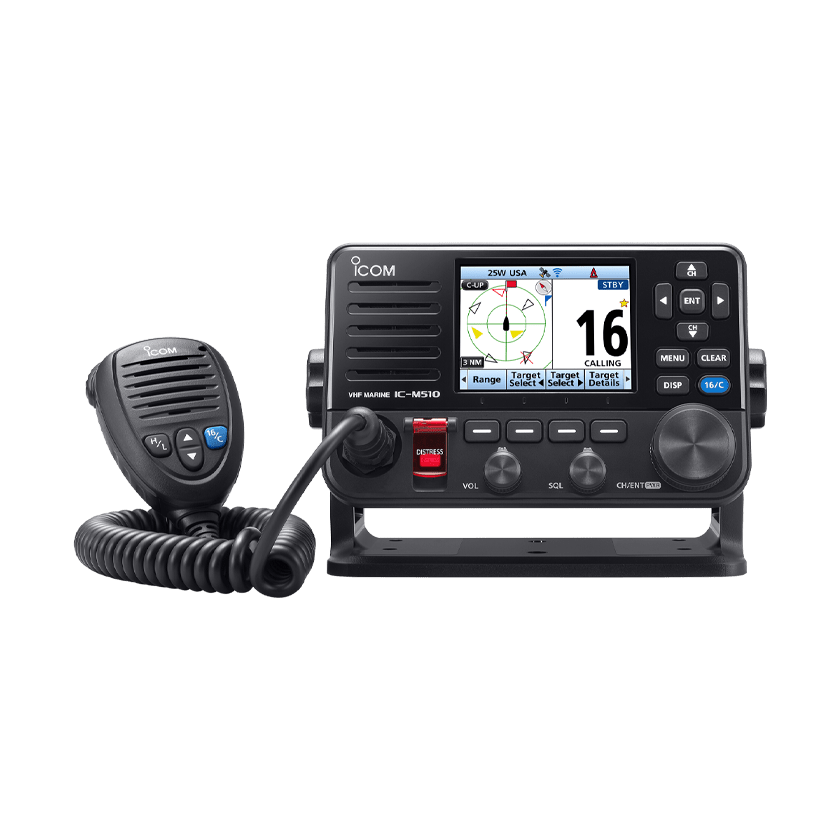

Icom M510 EVO DSC NMEA Marine Fixed Mount
Original Icom Class D DSC, NMEA 2000 Marine VHF Radio | VHF Fixed Mount w/ Large Color TFT Display Wireless LAN Function | 25W | IPX8
AIS version available.
Brochure / Manual
Brochure
Description
M510 EVO
Evolution Continues.
Redefining Marine Communication!
The IC-M510 EVO is a multifunctional and stylish VHF marine transceiver that also features innovative smartphone operation technology. Its built-in class D DSC provides essential maritime communication, supporting safety on the water. Integration with built-in NMEA 2000™ connectivity and two-way hailer/RX hailer functions enhances your experience at sea even more. Simple remote control through a smart device enables an unprecedented onboard communication experience. In addition, the product features a color display, navigation functions, and a stylish design that won an iF design award. It can be used for pleasure boats, fishing boats, sailing, as well as in rescue and public safety.
NMEA 2000™ and Loud 25 W Two-Way Hailer/20 W RX Hailer Now Built-in
The NMEA 2000™ network provides plug-and-play data communication to inter-connect with other marine equipment such as an MFD (Multi-Function Display.) The radio can send GNSS (GPS) position, AIS information*, DSC call, and radio channel data to other equipment.
* AIS receiver may not be included depending on the transceiver version
When connected to the optional SP-37 speaker horn, you can talk with the crew on the deck or shore via the radio’s microphone and hear any reply via the horn speaker. The RX hailer function lets you to listen the radio traffic on the deck or tower through the hailer speaker. You can also sound foghorn patterns from the hailer speaker.
Use the RS-M500 app (for iOS/Android) to wirelessly control the IC-M510 EVO through the radio’s Wi-Fi feature. You can use up to three smart devices as a wireless microphone, intercom between a device and the M510, and a simple remote control for specific functions.
Award Winning Sleek Design – iF DESIGN AWARD 2022
The IC-M510 series (including IC-M510 EVO) is a winner in the world-renowned iF DESIGN AWARD 2022. The radio can be installed in either panel or trunnion mounting and has a sleek design that looks great on a boat’s black glass cockpit dashboard.
Wide Viewing Angle Color TFT LCD

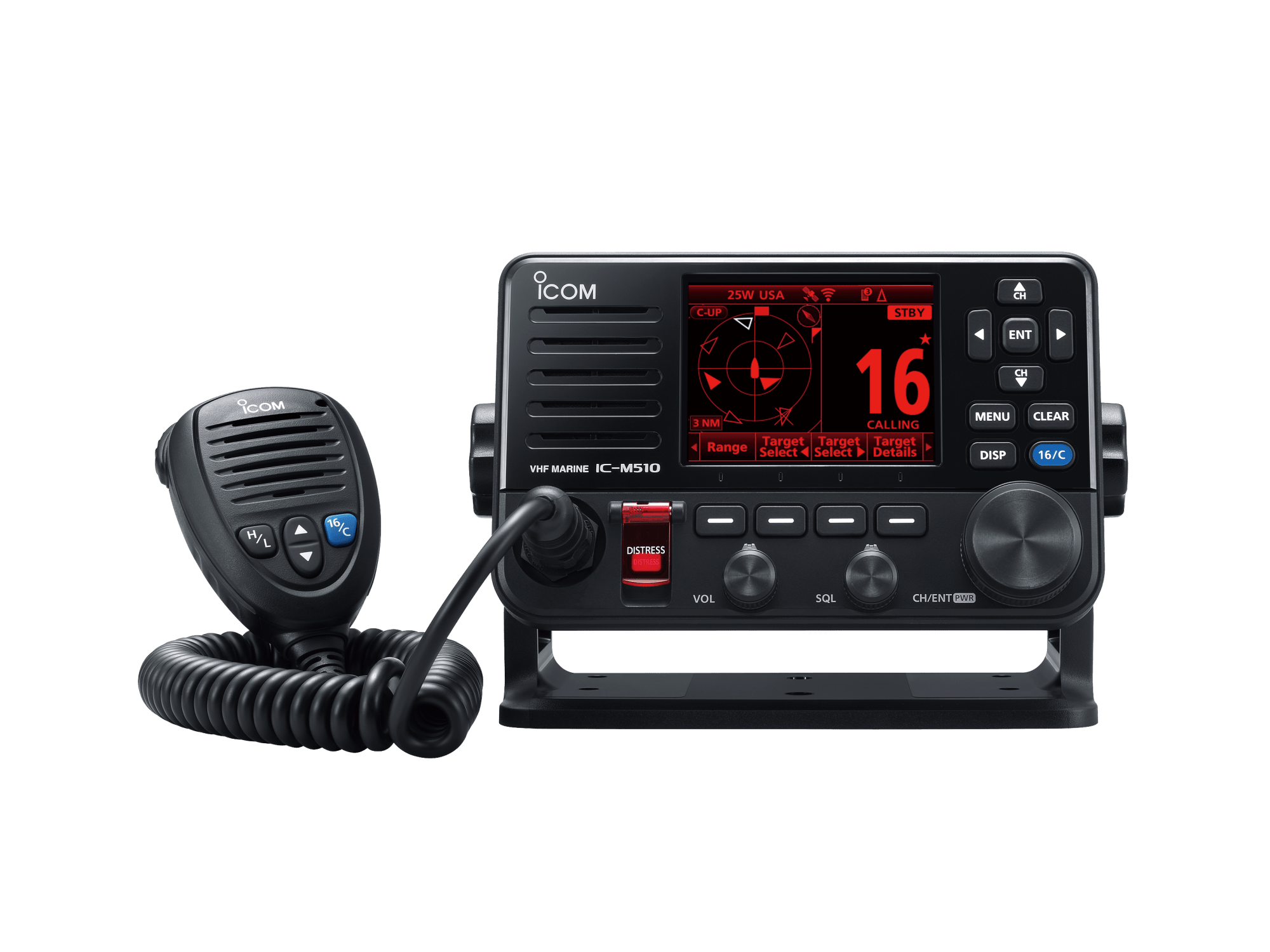

The color TFT LCD provides nearly a 180-degree viewing angle. The wide-viewing angle display has high-resolution characters and function icons. Hold down the DISP key to switch the Night mode screen, ensuring good readability in low light conditions.
Built-in Class D DSC, “Distress” Button Can be a Lifesaver in an Emergency Situation
With just a press of the “DISTRESS” button, the built-in DSC (Digital Selective Calling) system can digitally transmit distress information to the Coast Guard and/or other vessels. The DSC watch function continuously monitors the DSC channel (Ch. 70) for added safety and security.
15 W Speaker Provides Clear and Loud Audio
The built-in waterproof speaker enhances the received audio and provides powerful, clear audio.
Integrated AIS Receiver*
With its integrated AIS receiver*1 or external NMEA sentence*2, the IC-M510 can show real-time AIS vessel traffic information on the display. You can directly make an individual DSC call to selected AIS targets from the AIS screen.
*1 AIS receiver is not included depending on the transceiver version. *2 Optional MA-510TR or third-party AIS receiver/transponder.
Simplified Navigation Function
The Navigation function guides you to a specified waypoint or AIS target. You can assign up to 100 destinations as waypoints, such as your favorite fishing spots or starting positions for yacht races.
Combined with MA-510TR Supports Safer Navigation
When connected to the optional MA-510TR Class B AIS transponder, you can send and receive real-time information about vessels, including identity, position, speed, course, and other relevant data, displayed on your screen. Making your vessel’s position known to others helps prevent collisions and accidents, especially at night, in rough weather, or in crowded shipping routes. The MA-510TR enhances safety during navigation at sea.
Other Features
- Integrated GNSS receiver (selectable from either internal GPS antenna or use optional UX-241 GNSS antenna)
- IP68 advanced waterproofing (1 m depth of water for 60 minutes)
- Voice Scrambler with optional UT-112A
- AquaQuake™ prevents audio degradation from a water-logged speaker
- Supplied HM-205RB speaker-microphone can be connected to either the front or rear panel to meet to user’s requirement
- External speaker connection
- Optional HM-195 CommandMic™ are available
- Supports 4-digit channels
- Supplied waterproof flash mount gasket for panel mount
General
| Frequency range | TX | 156.025 ~ 157.425 MHz | |
|---|---|---|---|
| RX | 156.050 ~ 163.275 MHz | ||
| DSC | 156.525 MHz | ||
| AIS1, 2*1 | 161.975, 162.025 MHz | ||
| Usable channels | USA, CAN, INT, WX channels | ||
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)*1 | ||
| Power supply requirement | 13.8 V DC (11.7 ~ 15.9 V DC) | ||
| Current drain (at 13.8 V DC) | TX 25 W output | 5.0 A | |
| RX Max. audio | 1.6 A 2.0 A (with HM-195) 4.0 A (with extSP) 7.3 A (with ext SP, RX hailer, and HM-195) | ||
| Operating temperature range | –20°C ~ +60°C, –4°F ~ +140°F | ||
| Antenna impedance | 50 Ω | ||
| Dimensions (W x X x D) | 175 x 110 x 53 mm, 6.8 x 4.3 x 2.1 in | ||
| Weight (approx.) | 730 g, 1.6 lb (not including microphone) | ||
Transmitter
| Output power (at 13.8 V DC) | 25 W, 1W | |
|---|---|---|
| Max. frequency deviation | ±5 kHz | |
| Frequency tolerance | ±0.5 kHz | |
| Spurious emissions | Less than −70 dBc (at 25 W) | |
| Residual modulation | More than 40 dB | |
| Adjacent channel power | More than 70 dB | |
Receiver
| Sensitivity (at 12 dB SINAD) DSC (1% BER) | –10 dBμ typical –1 dBμ emf typical | |
|---|---|---|
| Adjacent channel selectivity DSC (1% BER) | More than 75 dB More than 73 dBμ emf | |
| Spurious response DSC (1% BER) | More than 75 dB More than 73 dBμ emf | |
| Intermodulation DSC (1% BER) | More than 75 dB More than 68 dBμ emf | |
| Hum and noise | More than 40 dB | |
| Audio output power (at 10% distortion with 4 Ω) | More than 15 W (external speaker) 20 W typical (RX Hailer) 25 W typical (Hailer) | |
Wireless LAN
| Wireless LAN standard | IEEE802.11 b/g/n |
|---|---|
| Authentication and Encryption | WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES) |
| Channels | 1 to 13 (2.4 GHz band)*2 |
| Output power | Less than 10 mW/MHz |
*1 Only for the Integrated AIS version. *2 May differ depending on the country of use.
Measurements made in accordance with TIA/EIA 603.
All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard | MIL-810 G | |
|---|---|---|
| Method | Procedure | |
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain | 506.5 | I |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Applicable IP Rating
| Ingress Protection Standard | |
|---|---|
| Dust & Water | IP68 Dust-tight and waterproof protection |
Supplied Accessories
- Speaker microphone, HM-205RB
- Microphone hanger
- DC power cable
- Mounting bracket kit
- Flash mount gasket
