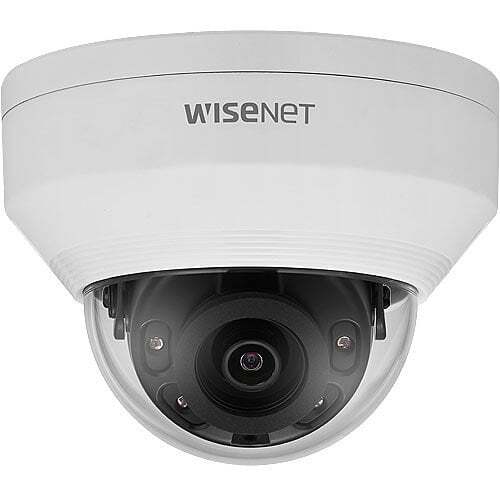

Hanwha ANV-L7012R- 4MP Fixed

Hanwha 4MP Fixed 3.3MM Dome Camera / ANV-L7012R

SKU: Hanwha 4MP Fixed 3.3MM Dome Camera / ANV-L7012R Category:

Description

  • 4MP resolution, Up to 30fps(H.265/H.264)
  • Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
  • 3mm lens with 107.5° HFoV
  • IR viewable length: 20m
  • Day & Night (ICR), WDR (120dB)
  • H.265, H.264, MJPEG, Multiple streaming supported
  • Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
  • Hallway view (90⁰/270⁰), LDC support, WiseStream II
  • Micro SD/SDHC/SDXC memory slot
  • IP66, IK10



Specifications

Video
Imaging Device 1/3″ CMOS
Resolution 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate H.265/H.264 : Max. 30fps at 4M all resolutions MJPEG : Max. 15fps
Min. Illumination Color : 0.13Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED On)
Lens
Focal Length (Zoom Ratio) 3mm fixed focal
Max. Aperture Ratio F1.6
Angular Field of View H: 98.3° / V: 54.2° / D: 114.6°
Min. Object Distance 1.1m(3.6ft)
Focus Control Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0° ~ 350° / 0° ~ 67° / 0° ~ 355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum/Maximum/Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
Alarm Triggers Analytics, Network disconnect * Alarm input(with NW I/O Box)
Alarm Events File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Handover
IR Viewable Length 20m(65.62ft)
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression H.265/H.264 : Main/High, MJPEG
Smart Codec Manual (5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265 : CBR or VBR MJPEG : VBR
Streaming Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication
Application Programming Interface ONVIF Profile S/G/T, SUNAPI (HTTP API)
General
Webpage Language English
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Memory 512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH
Storage Temperature / Humidity -30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH
Certification IP66, IK10
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption Max 7.5W, typical 5.7W
Mechanical
Color / Material White / Plastic, Aluminum
RAL Code RAL9003
Product Dimensions / Weight Ø120.3×91.7mm(Ø4.74×3.61″), 410g
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 44.3m(145.25ft)
Observe (63PPM/ 19PPF) 17.7m(58.10ft)
Recognize (125PPM/ 38PPF) 8.9m(29.05ft)
Identify (250PPM/ 76PPF) 4.4m(14.53ft)
