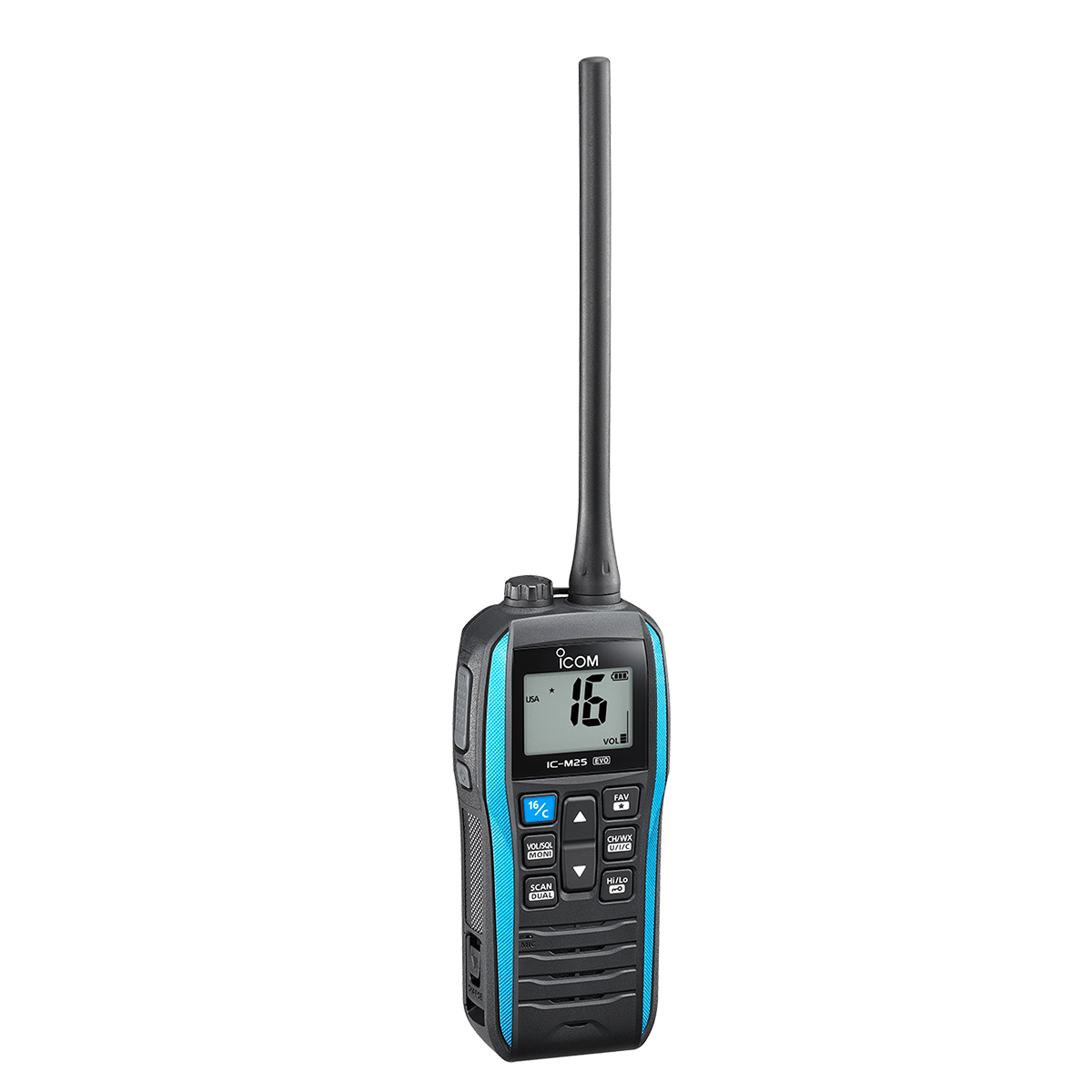

M25 EVO Blue
M25 Evo Black

Icom M25 EVO Floating VHF Marine Radio

SKU: M25 EVO Categories: , Tag:

Icom 5W floating Marine VHF Marine Radio | Includes USB-C type charging Cable, Belt Clip, Antenna

Brochure / Manual

Brochure

Description

M25 EVO

Floating VHF Radio with a Fresh Design for Marine Adventures

The IC-M25 EVO is an upgraded model of the extremely popular IC-M25 floating VHF marine handheld transceiver. The IC-M25 EVO is designed with an improved grip texture for easier handling, and larger buttons for easier operation. Moreover, it has adopted a new power-saving Eco Mode which will allow approximately about 14 hours of operation, which is about a 30% improvement. Furthermore, a USB Type-C™ charging port is standard. The IC-M25 EVO still retains its compact and lightweight body, and industry leading Float’n Flash™ and submersible design.

Float’n Flash™

If the IC-M25 EVO is accidentally dropped into water, it floats, flashes, and emits an alarm, reducing the risk of loss during water activities. Icom has led the marine handheld radio industry with this technology since the introduction of the IC-M33 in 2006.

Enhanced Practical Design

The IC-M25 EVO is built for practicality, featuring an improved side grip texture for a secure, anti-slip hold even with wet hands. Enlarged user-friendly buttons ensure easy operation for channel navigation.

Lightweight and Compact Body

Weighing just 228 g (8.0 oz) and with a slim body depth of 31.2 mm (1.2 in), the IC-M25 EVO is lightweight and easy to carry for extended periods. Its compact body allows for seamless one-handed operation during activities.

Power Saving Eco Mode Realizes 14 Hours Operation

The IC-M25 EVO offers up to 14 hours* of extended operation with its power-saving Eco Mode. By reducing transmit power to 2.5 W, the operating time increases by approximately 30% compared to the standard 5 W output. This long battery life makes it ideal for your adventures.

* Typical operation with Tx (Mid): Rx: Standby=5:5:90

General

Frequency range Tx 156.025 ~ 157.425 MHz
Rx 156.050 ~ 163.275 MHz
Usable channel groups INT, USA, CAN, WX channels
Type of emission 16K0G3E (FM)
Power supply voltage 3.7 V DC nominal
Current drain Tx 2.3 A
Rx (Internal SP/External SP) 400 mA/230 mA (max. audio)
Operating temperature range –20°C ~ +60°C, –4°F ~ +140°F
Antenna impedance 50 Ω
Dimensions (W × H × D)
(Projections not included)		 56.5 × 134.0 × 31.2 mm,
2.2 × 5.3 × 1.2 in
Weight (approximately) 228 g, 8.0 oz (with antenna and MB-133）

Transmitter

Output power Approximate 5 W / 2.5 W / 1 W
Max. frequency deviation ±5.0 kHz
Frequency stability ±10 ppm
Spurious emissions –68 dBc typical
Adjacent channel power More than 70 dB
Residual modulation More than 40 dB

Receiver

Sensitivity 0.25 μV typical (at 12 dB SINAD)
Squelch sensitivity 0.25 μV typical (at threshold)
Adjacent channel selectivity 70 dB typical
Spurious response 70 dB typical
Intermodulation 70 dB typical
Audio output power
(at 10% distortion)		 Internal SP 700 mW typical (8 Ω load)
External SP 300 mW typical (4 Ω load)

Measurements made in accordance with TIA/EIA-603.

All stated specifications are subject to change without notice or obligation.

Applicable IP Rating

Ingress Protection Standard
Water IPX7 (Waterproof protection)

Supplied Accessories

  • ・ USB Type-C™ cable, OPC-2480
  • ・ Belt clip, MB-133
  • ・ Antenna
  • ・ Hand strap

* Not supplied or may differ, depending on version.













Additional information

Weight 0.5 lbs
Dimensions 1.2 × 2.2 × 5.3 in
