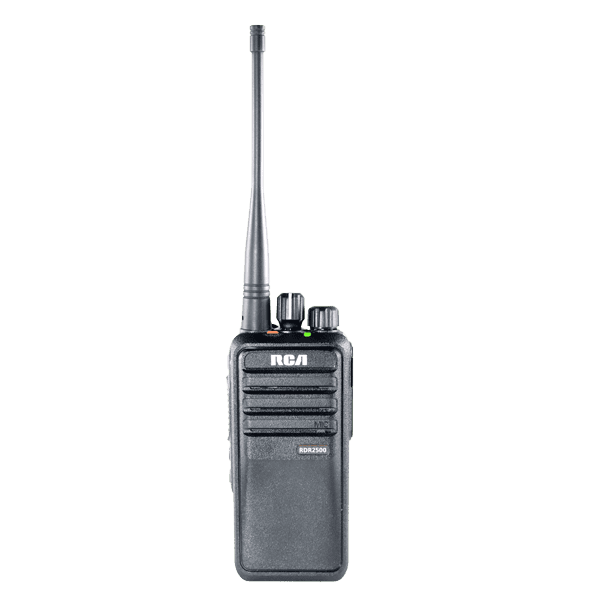

RDR2500 Professional Handheld Two-Way Radio “Compatible with Motorola”

SKU: RDR2500 Category:

$219.00

Technology: DMR DIGITAL | Power: 5W | Warranty: 2 YEARS

Best Value on the market! Reliable, Durable, Cost-Effective.
For businesses and professionals who require cost-effective, reliable and easy-to-use radios, the RDR2500 two-way radio provides the best value on the market. Reliable, durable, and cost-effective, our RDR2500 radios provide a simple and efficient communication solution for a safer and more productive work environment.

Works with your Motorola, RCA, Kenwood, Icom, or any of your Two-Way Radios

Alongside our hassle-free full 2-year warranty, the RDR2500 radio includes:

  • 100% Compatibility with your existing system
  • Analog/Digital operation

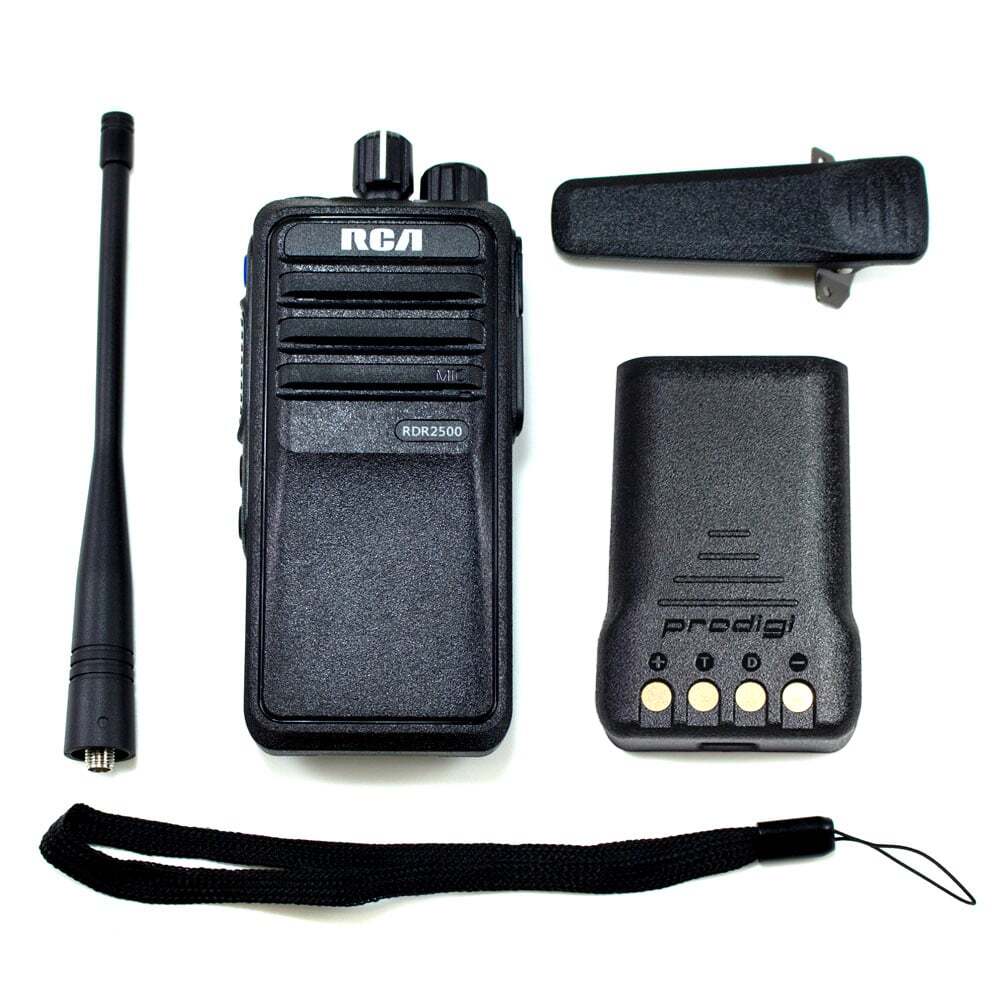

  • 1800mAh battery, charger, belt clip, and antenna
  • In stock and ready to ship same day
  • Water Protection Program & Extended Warranty Available

Product Documents

Brochure & Spec Sheet

Manual



Description

CROSS-BRAND COMPATIBILITY

DMR

Designed strictly according to the Digital DMR ETSI Standard TS 102 361-1,-2,-3, the RDR2500 Series radios are compatible with all other major brands, including digital equipment, such as the Motorola MotoTrboTM and Vertex eVergeTM series two-way radios and repeaters.

UPGRADE TO DIGITAL AT YOUR OWN SPEED

Analog and Digital operation will give you the flexibility to upgrade to Digital at your own speed, without sacrificing safety and keeping your business operations running smoothly during the transition period.

CRYSTAL CLEAR AUDIO QUALITY, IMPROVED COVERAGE

Designed with X-Sound+ HDTM for exceptional voice quality. The RDR2500 series radios provide loud 1 Watt of power audio, at the same time eliminating background noise and static from the voice transmissions and delivering crystal clear voice message which results in a better, improved radio coverage.

IMPROVED COVERAGE

Today’s digital technology allows for the transmitted signal to stay strong and clear from background noise for longer distances, until it reaches its maximum range. This allows for virtually no deterioration of the voice quality, thus providing larger usable coverage in areas where analog communication was very poor or not possible at all.

TRUE OPERATIONAL VERSATILITY

The RDR2500 series comes in two different models, the standard RDR2500 unit and the upgraded RDR2550 with 16 character display and industry leading 7 programmable function buttons.
Compare the RDR2500 series radio models

HEAVY-DUTY COMMERCIAL HOUSING

The RDR2500 series radios are designed with durability in mind and built to survive the normal, everyday commercial wear and tear. The radio’s 3.6mm high quality, reinforced polycarbonate housing can be found only in public safety grade equipment and it is unmatched in this class.

RELIABLE, VIBRATION AND SHOCK RESISTANT DESIGN

Single chip transceiver solution with advanced RF quadrature signal processing without vibration and shock sensitive ceramic filters. This very reliable design significantly reduces the radio receiver failures due to normal everyday wear and tear, often involving unwanted equipment drops and knocks.

AUDIO ACCESSORY COMPATIBILITY

Upgrading from existing radio with RCA and Motorola style 2-prong accessory connectors? The RDR2500 series radios are designed with the same style accessory connector, providing you with the option to keep your speaker mics, earpieces and headsets. Built and recommended to be used with X03S style accessory connector, the radios will accept both, the X03 and X03S connectors.

FULL SHIFT PERFORMANCE

Designed to be power efficient. When working in digital mode, the battery power consumption is lower up to 40% lower, providing longer operating time which ensures that your employees will stay connected beyond a full working shifts. With a typical duty cycle of 5 (Rx) – 5 (Tx) – 90 (Stand By), the standard 1800mAh Lithium Ion battery provides up to 10 hours of operation in Analog mode and up to 14 hours of operation in Digital mode.

General Specifications
Radio Model RDR2500
Number Of Channels 32
Frequency Bands Digital: 12.5 KHz / Analog: 12.5 KHz/25 KHz
Operating Temperature (-20°C)~+50°C / (-4°F)~+122°F
Weight 318g / 0.7 lb w/ B2618LI

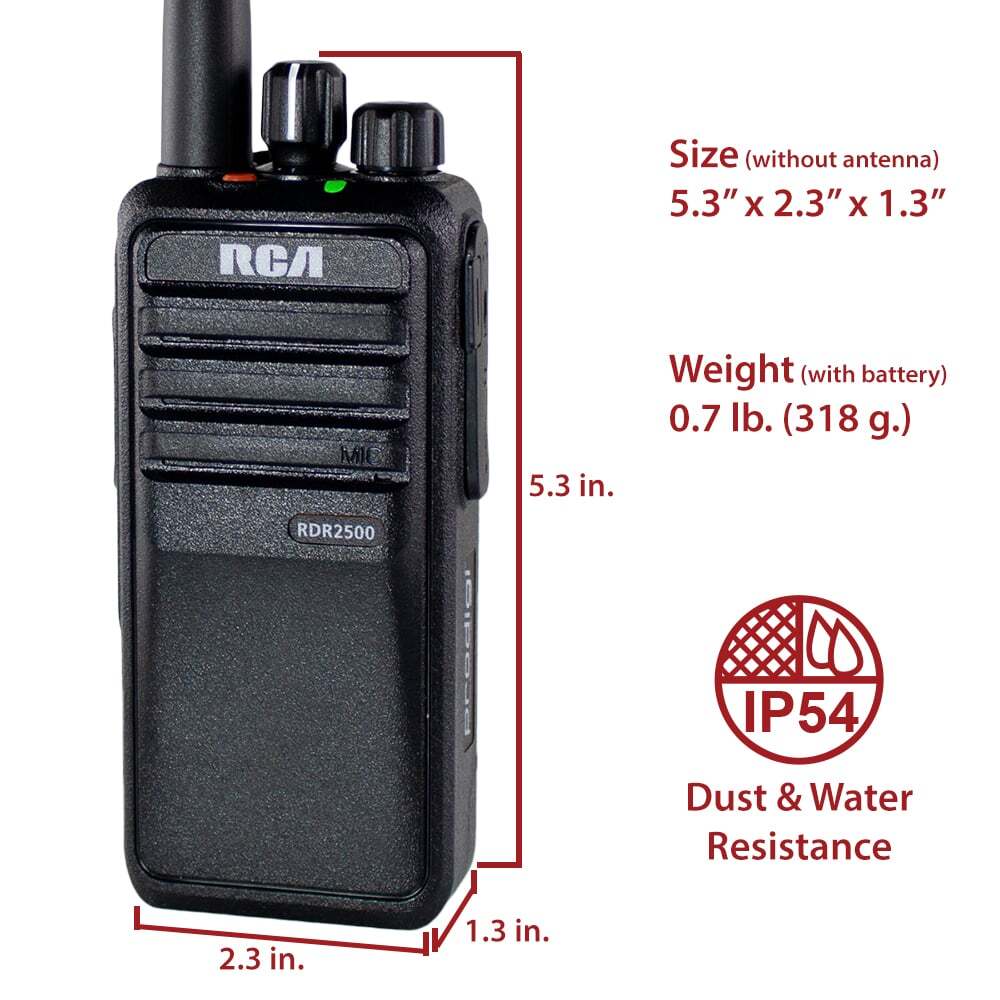

Size: HxWxD (Inches) 5.3” x 2.3” x 1.3” (without antenna)
IP Rating IP54 Dust and Water Resistant
Durability Standards MIL-STD 810 C, 810 D, 810 E, 810 F, 810 G
Standard Battery B2618LI - 1800mAh / 13.32Wh Lithium-Ion Battery
Battery Life Up to 14 Hours (Digital) / 10 Hours (Analog) w/ B2618LI
Channel Spacing Digital: 12.5 KHz / Analog: 12.5 KHz/25 KHz
Digital Protocol Digital DMR ETSI Standard TS 102 361-1,-2,-3
Digital Vocoder Type AMBE+2TM
Conformance FCC, IC, FCC 2013 Narrowband Compliant
Voltage DC 7.4V
Storage Temperature (-40°C)~+80°C / (-40°F)~+176°F
Receiver Specifications
Frequency Stability ±1.0 ppm
Intermodulation 60dB (TIA603D)
Adjacent Channel Selectivity 65dB @ 12.5 KHz (TIA603A)
Rated Audio Output Power 1W @ 16 Ohms
Analog Sensitivity 0.22μV / -120dBm (12dB SINAD)
Digital Sensitivity 0.2uV/-121dBm (BER 5%)
Co-Channel Rejection 12dB @ 12.5 KHz
Spurious Response Rejection 70dB (TIA603D)
Receive Spurious Radiation [email protected]<1 GHz
[email protected]>1 GHz
Block 84dB
Transmitter Specifications
Transmit Power 5W
Audio Distortion ≤3%
Audio Frequency Response (TX) +1dB---(-3)dB
FM Noise 40db @ 12.5 KHz
Transmit Spurious Radiation [email protected]<1 GHz
[email protected]>1 GHz
(TIA603D)
Adjacent Channel Power -60dB @ 12.5 KHz
Modulation Limit 2.5KHz @ 12.5 KHz
Idle Slot Power -57dBm
FSK Error ≤3%
Emission Designator (Analog) 6K0F3E, 6K40F3E, 6K56F3E, 6K72F3E, 7K52F3E, 12K5F3E
4FSK Digital Modulation 12.5 KHz Data: 5K6F1D/F1W, 7K52F1D, 7K68F1D/F1W/F7W, 7K84F1D/F1W/F7W/ 8K00F7W / 8K32F7W, 8K96F1D/F1W, 12K5F1D/F1W
Intermodulation 60dB (TIA603D)
