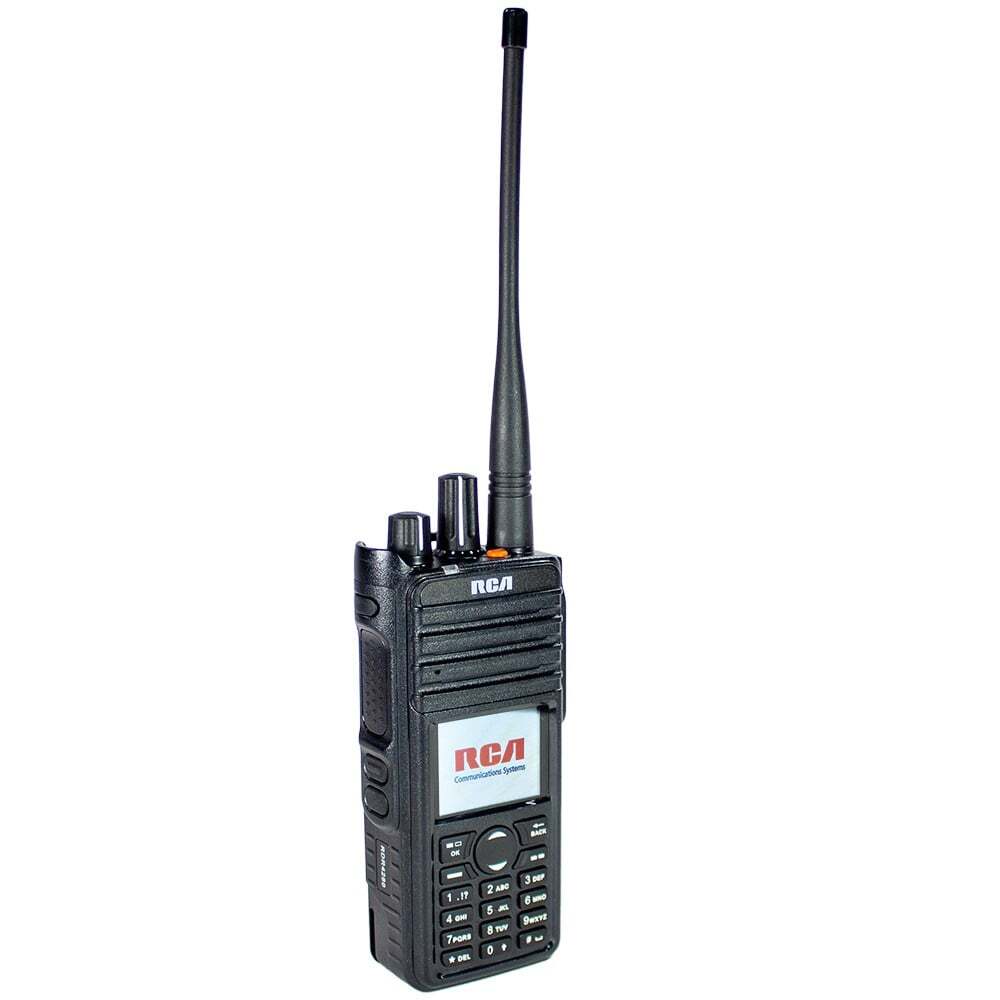

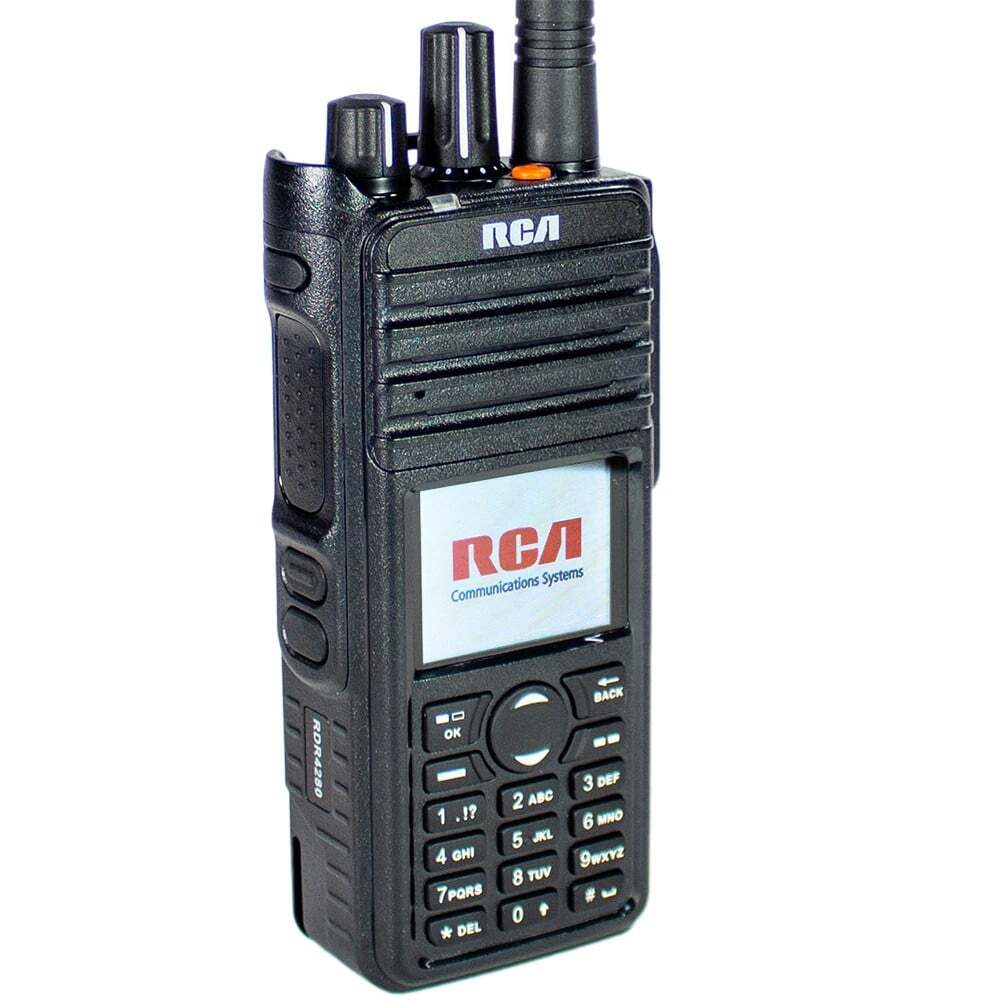

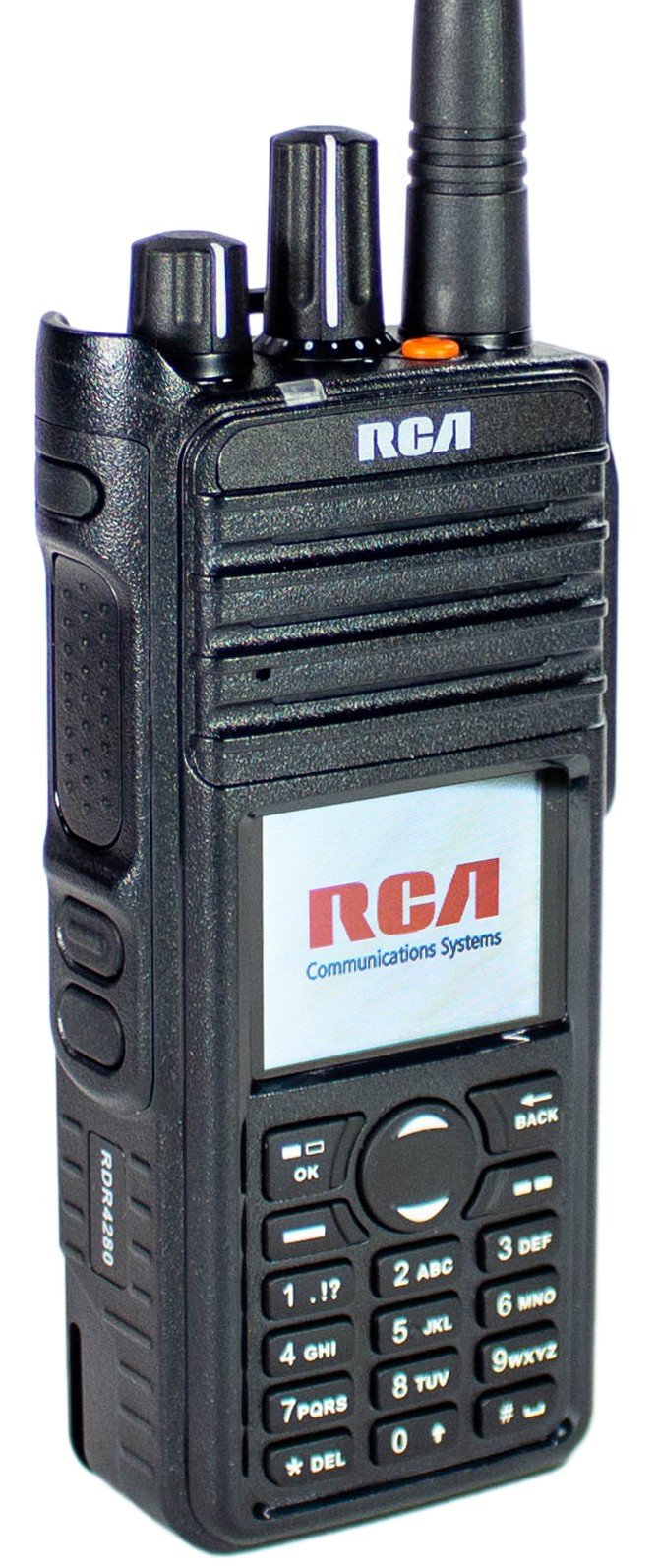

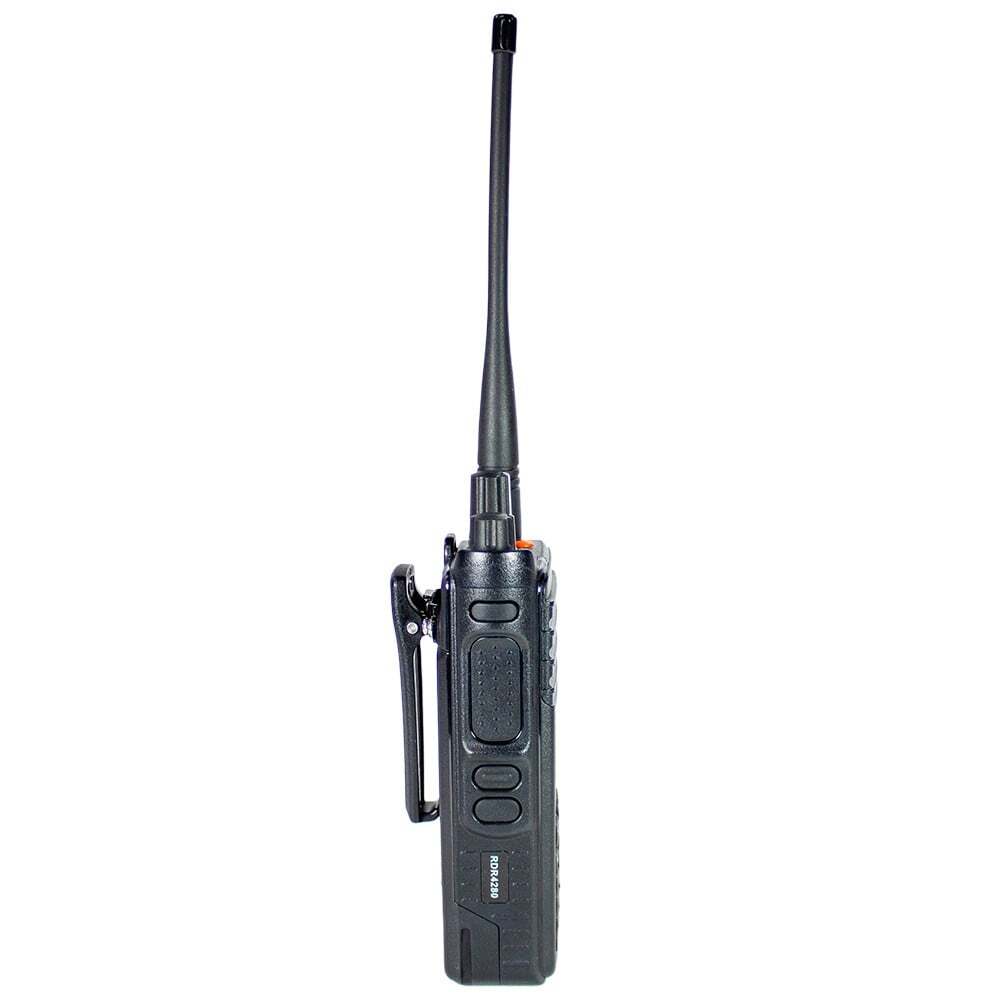

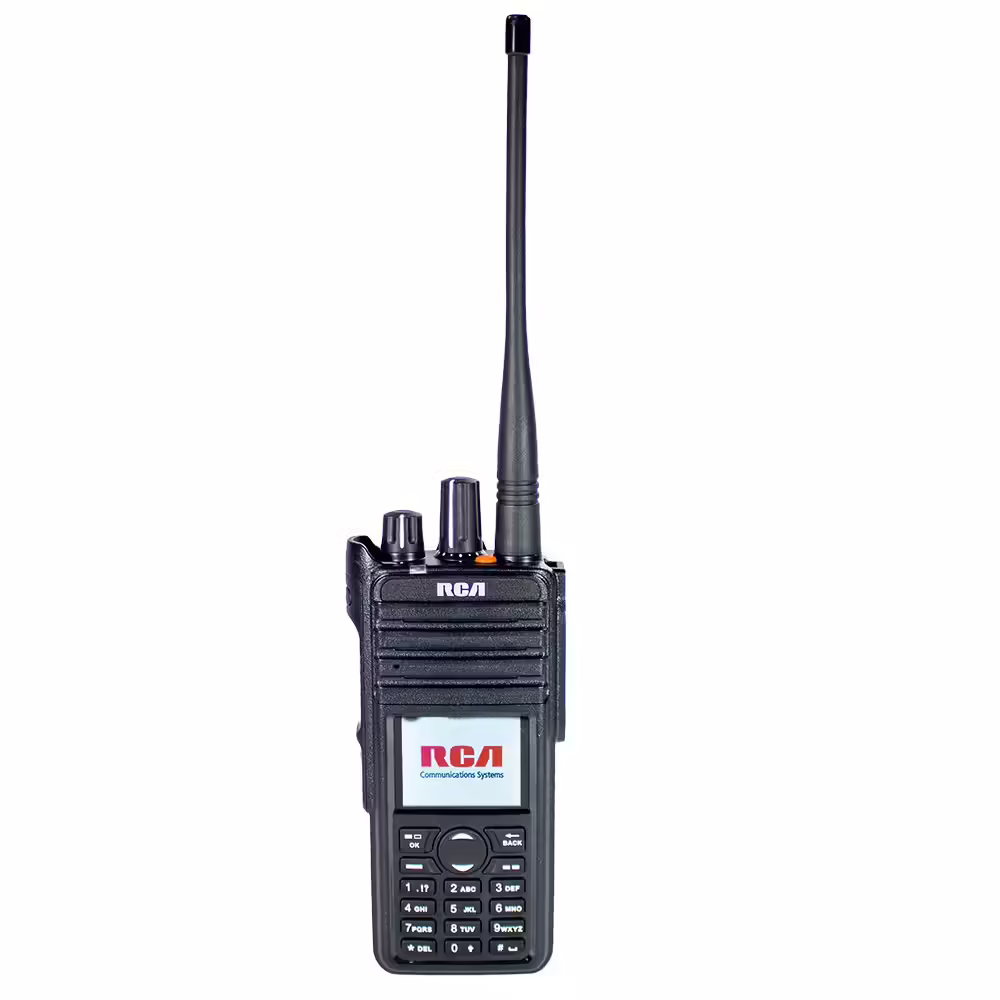

RDR4280 Intrinsically Safe Two-Way Handheld Radio

SKU: RDR4280-IS Category:

Technology: DMR DIGITAL and ANALOG | Power: 4/5W | Warranty: 3 YEARS Best Value on the market! Reliable, Durable, Cost-Effective. For professionals who require cost-effective, reliable and easy to use radios to provide simple and efficient communication solution for a safer and more productive work environment.

  • Intrinsically Safe
  • 4/5 Watts
  • Superior Battery Life (2250mAh battery)
  • Waterproof (IP67 Rating)
  • Extremely Durable
  • Best Warranty in the Country for your Industry

The best price you can get on a dependable brand name professional class business radio. The RDR4280 leads the industry with an unmatched comprehensive 3 year warranty. It’s real durability that is field tested and with full 4 watt UHF / 5 watt VHF; there is no radio that has better coverage

Product Documents

Brochure & Spec Sheet



Description

Intrinsically Safe
Certified to the requirements of UL 913 5th Ed., TIA 4950-A, CSA C22.2 No. 157- 92 | Class I, II, III; Division 1; Groups C-G; Division 2; Groups A-G; Temp T3C (with B4223LIIS IS Approved Battery Only) for use in hazardous locations where flammable gas, vapors or combustible dust may be present. The RDR42x0 Series Intrinsically Safe Certified Radios can be used in a wide range of applications and industries such as Oil and Gas Extraction, Chemical and Paint Manufacturing, Refineries and more.

FEATURE RICH AND VERSATILE
The RDR42x0 series portables come in 3 different models, the standard nondisplay RDR4220 unit; the upgraded RDR4250 with large, 1.8 inch Full Color Display and navigation keys; the advanced RDR4280 unit with a large, 1.8 inch Full Color Display, full keypad. Businesses, Departments and Government Agencies can choose the best model for their needs, taking advantage of advanced features such as Caller ID, Group and Private Call, Radio Check, Radio Monitor, Radio Enable/Disable, Emergency, Man Down, Lone Worker Alerts, Text Messaging, Pre-saved Status Messaging, Encryption andmore.

TOUGH AND RELIABLE PORTABLES

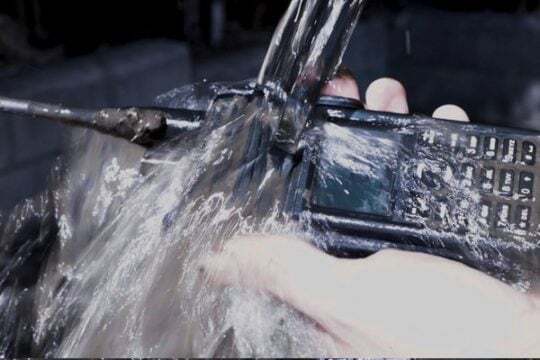

The RDR4200 series portables are designed & built with the most demanding conditions in mind. Your team needs radios that will not fail them, regardless of the environment. The radios are designed to the Military 810C, D, E, F, G & the IP67 Waterproof & Dustproof standards.

AVAILABLE ADVANCED OPTIONS
When workers safety and communication security are of utmost importance, the RDR4200 radios offer optional GPS Location tracking service* and advanced 40-bit ARC4 type encryption. Encrypting your radio communications and tracking your asset’s location results in improved worker safety, increased productivity and shortened incident response time

FULL SHIFT PERFORMANCE


The RCA PRODIGITM RDR4200 series portables provide up to 40% improved battery performance in digital mode over analog, allowing for longer operating time on a single battery charge. With a typical duty cycle of 5 (Rx) – 5 (Tx) – 90 (Stand By), the RDR4280 color display unit with 2300mAh Lithium Ion battery can provide up to 10 hours of operation in Analog mode and up to 14 hours of operation in Digital mode.



INDUSTRY LEADING WARRANTY


The RDR4200 series radios are backed standard by an industry leading, hassle-free Three (3) Year Warranty.

CRYSTAL CLEAR AUDIO


Designed with X-Sound+ HD TM for exceptional voice quality. The RDR4200 series radios provide loud 1 Watt of power audio, eliminating background noise and static even from analog voice transmissions and delivering crystal clear voice message.

IMPROVED COMMUNICATION RANGE
The RDR4200 Radios utilize the DMR digital technology allowing for the transmissions to stay clear from background noise regardless of the distance between two radio units, providing virtually no deterioration of the voice quality, thus increasing the usable coverage area where analog communication will be very poor or not possible at all.

General Specifications
Radio Model RDR4280
Number Of Channels 1000
Frequency Bands VHF: 136-174 MHz* / UHF: 400-512 MHz UHF
Operating Temperature -4°F~+140°F (-20°C~+60°C)
Weight With LCD Display- 365gr. (12.8oz) No LCD Display- 340gr. (11.9oz)
IP Rating IP67
Standard Battery 2300mAh (Lithium battery)
Channel Spacing 12.5 KHz / 25 KHz
Digital Vocoder Type AMBE+2
Storage Temperature -40°F~+122°F (-40°C~+50°C)
Power Output 5 Watts VHF / 4 Watts UHF
Operating Voltage 8.4V (Max) 7.4V (Nominal)
Current Drain (Approx.) Standby: 0.14A
TX: 1.4A
RX: 0.35A
Antenna Impedance 50Ω
Antenna Gain 0dBi
LCD Display 1.8 inches, 160x128pixel, Full Color
Working Time Analog: up to 10h
Digital: up to 14h
Dimensions (Standard Battery, Not Including Antenna) 5.1 x 2.2 x 1.4 inch (H*W*D),130.2 x 57 x 35.8 mm (H*W*D)
Emission Designators 7K60F1D, 7K60F1E
Receiver Specifications
Intermodulation 70dB
Adjacent Channel Selectivity [email protected] / [email protected]
Sensitivity Analog: 0.22μV (12dB SINAD)
Digital: 0.2μV (5% BER)
Spurious Response Rejection 70dB
Rated Audio Distortion ≤3%
Transmitter Specifications
FM Hum And Noise [email protected]; [email protected]
FM Noise 11K0F3E @12.5KHz
Adjacent Channel Power 60dB(12.5kHz); 70dB( 25kHz)
Modulation Limit ±[email protected]12.5KHz; ±[email protected]
FSK Error ≤3%
4FSK Digital Modulation 12.5kHz Data: 7K60F1D 12.5KHz Voice: 7K60F1E
Audio Response +1 dB to -3 dB
Intermodulation 70dB
Rated Audio Distortion ≤3%
