Icom M400BB Black Box VHF Marine Fixed Mount
Original Icom Black Box VHF Fixed Mount Marine Radio
Brochure / Manual
Brochure
Description
M400BB
Space-Saving, Two-Piece Configuration

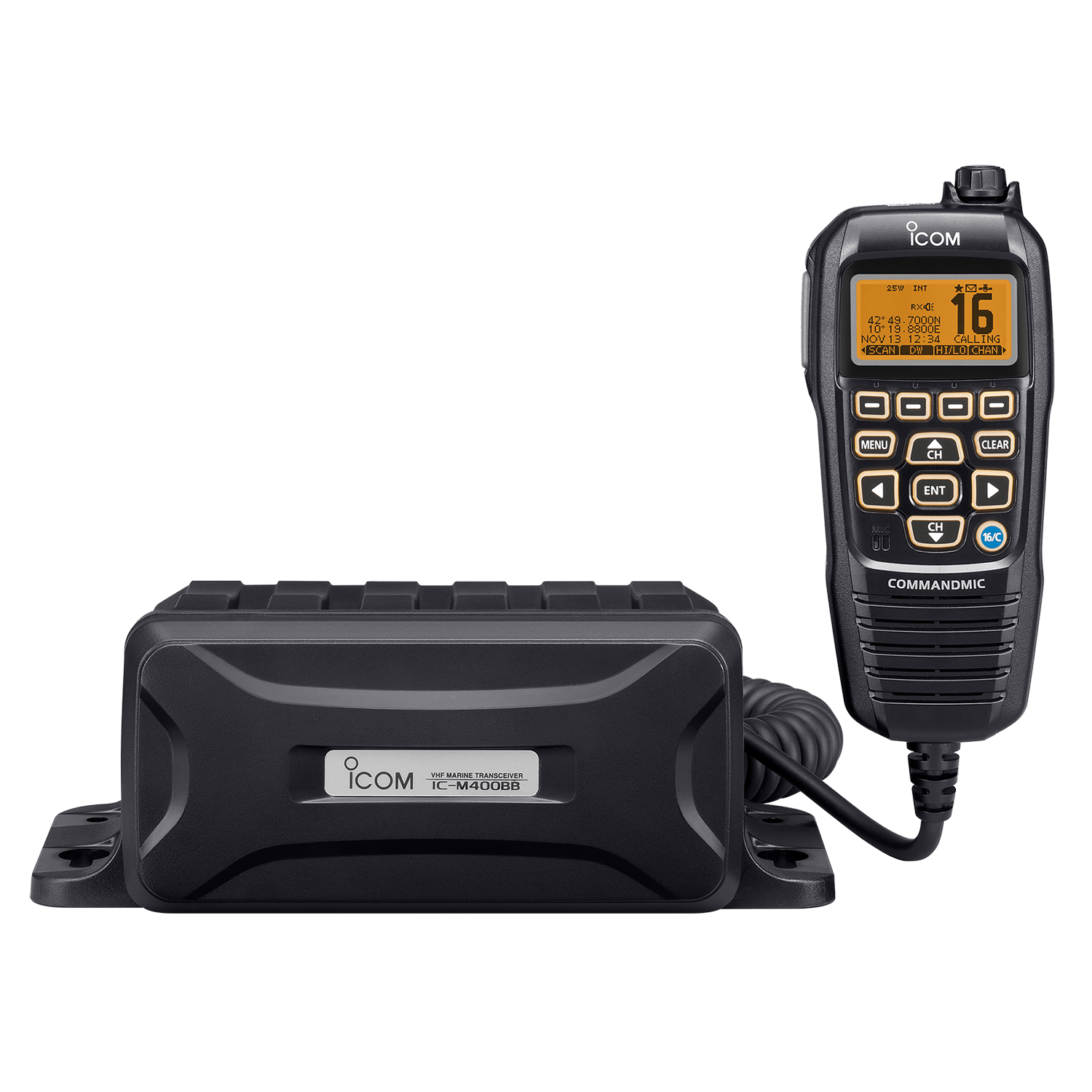

The IC-M400BB consists of a two-piece, black box configuration. All function control including DSC operation, can be made from the COMMANDMIC™, HM-195B/SW, and the RF unit, IC-M400BB, can be installed in an out-of-sight place.
New Intuitive User Interface
The new menu system is shared with Icom’s latest models. The bottom line of the dot-matrix display shows the software key functions which can be toggled with the left and right buttons.
Active Noise Cancelling
The built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call. Hear and be heard more clearly.
10 W Loud Audio, Public Address and Foghorn
The IC-M400BB has a built-in 10 W amplifier that increases the audio output from an additional external speaker. The public address function allows you to make an announcement from the microphone like a loud speaker, and the foghorn can also be emitted from the external speaker.
Built-in Class D DSC
The built-in DSC watch function monitors Ch. 70 (DSC channel) activity, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.
NMEA 0183®
When connected to an external GPS receiver, current position and time are shown on the COMMANDMIC display. When receiving DSC information from another vessel, the radio can transfer it to a navigational device via NMEA 0183 connectivity.
AIS Target Call with MA-510TR/MA-500TR
When connected to the optional MA-510TR/MA-500TR Class B AIS transponder, the AIS target call function allows you to set up an individual DSC call from the MA-500TR.
Other Features
- MarineCommander™ compatible
- AquaQuake™ water draining function (HM-195B/SW)
- IPX7 submersible protection both for IC-M400BB and HM-195B/SW (1 m depth for 30 minutes)
- Dual/tri-watch function for monitoring Ch.16 and/or call channel
- Priority and normal scan
- Supports 4-digit channels
| Frequency range | TX | 156.025–157.425 MHz |
|---|---|---|
| RX | 156.050–163.275 MHz | |
| Ch. 70 | 156.525 MHz | |
| Power supply requirement | 13.8 V DC nominal (11.7–15.9 V DC) | |
| Dimensions (W×H×D) (Projections not included) | IC-M400BB | 216×79×125 mm; 8.5×3.11×4.92 in |
| HM-195B/SW | 67.5×144.5×37 mm; 2.66×5.69×1.46 in | |
| Weight | IC-M400BB | 830 g; 1.83 lb |
| HM-195B/SW | 400 g; 14.1 oz | |
| Current drain | TX 25W output | 5.5 A Max. |
| RX Max. audio | 3.5 A Max. | |
| Sensitivity | Main | 0.22 μV typical (at 12 dB SINAD) |
| Ch. 70 | −5 dBμ emf typ. (1% BER) | |
| Intermodulation | Main | More than 70 dB |
| Ch. 70 | More than 68 dBμ emf (1% BER) | |
| Audio output power (at 10% distortion, 4 Ω load) | More than 2 W (HM-195B/SW) More than 10 W (RX speaker) | |
| RF output power | 25 W, 1 W (High, low) | |
Applicable IP Rating
| Ingress Protection Standards | |
|---|---|
| Water | IPX7 (Waterproof protection) |
All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- COMMANDMIC, HM-195B/SW*
- DC power cable

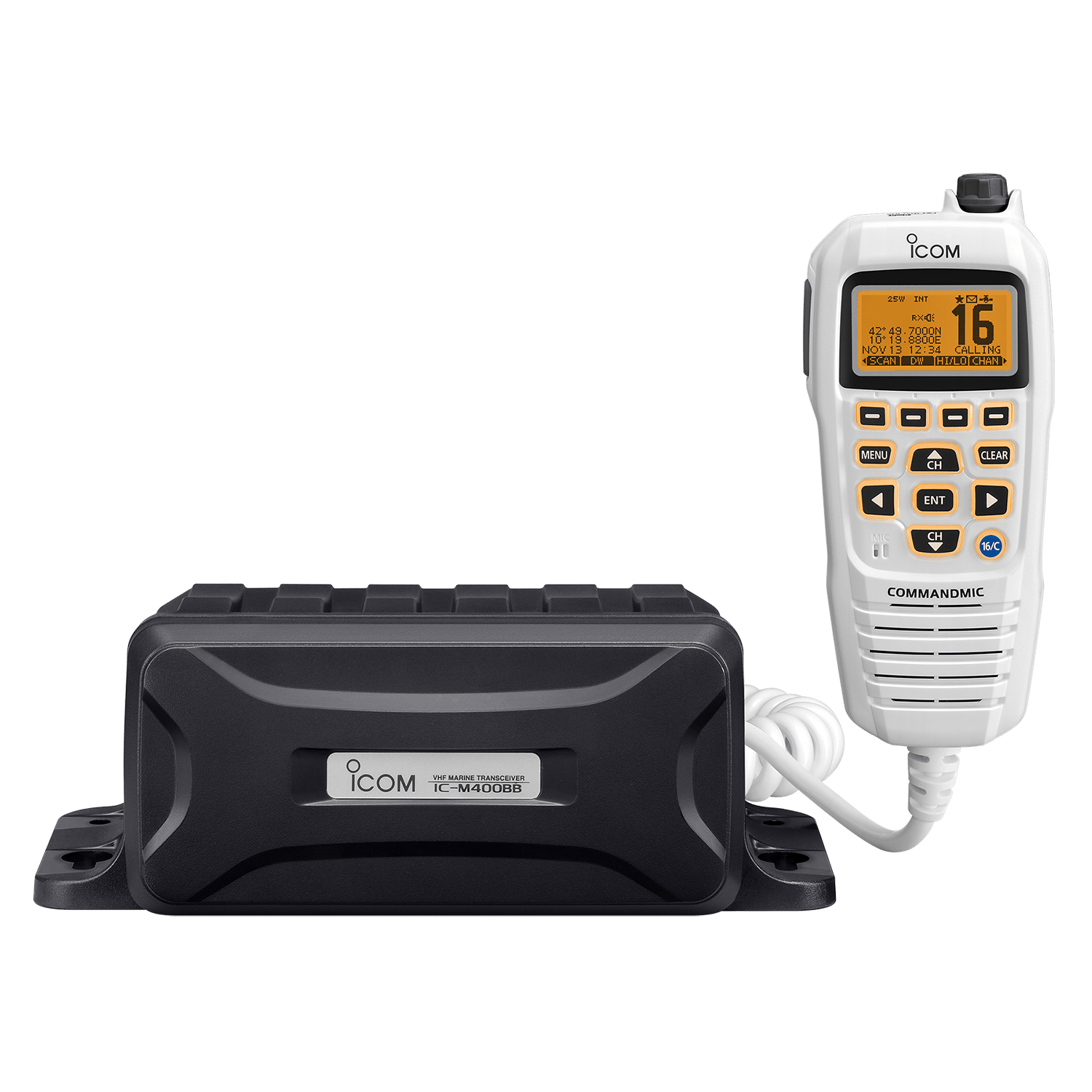

* COMMANDMIC, HM-195B (black color) or HM-195SW (white color) is supplied depending on version.
