IP501M
Instant Wide Area Coverage Over LTE
Brochure / Manual
Description

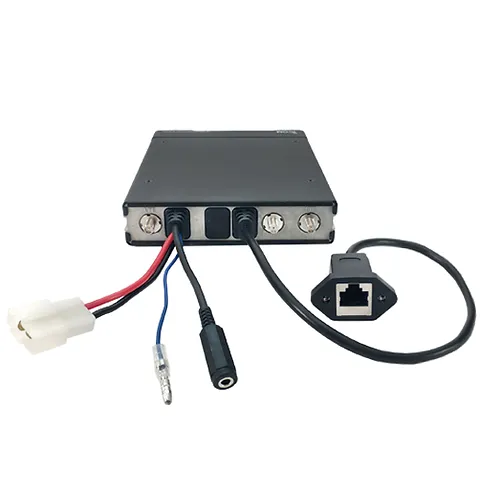

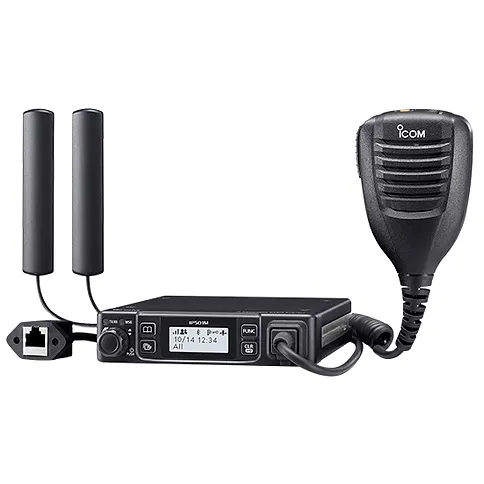

The IP501M LTE mobile PTT radio provides instantaneous wide-area communication using Icom’s CONNECT network. Users can make individual calls, group calls or all calls the same way as a conventional two-way radio. The IP501M does not require its own repeaters or IP network, which eliminates the costs of building and maintaining a wide area radio network. The mobile’s small size is perfect for vehicles with limited space. The IP501M also allows ethernet connectivity to interconnect with GPS software and other potential functionality in the future.
| Networks: | 3G and 4G | |
| Bluetooth: | Built-in | |
| GPS: | Built-in | |
| Audio Power: | 4W | |
| LAN: | RJ-45 type x 1 | |
| Waterproof Rating: | IP54 |
Communicate Effectively
The IP501M provides full-duplex communication for smooth telephone-style conversations (users can talk and receive at the same time).
Multiple users in the system can initiate calls respectively. There are no requirements to check or wait for channel availability.
Priority Interrupt Calling
The IP501M supports group calls with three or more people. In case of an emergency, you can break into an ongoing call to transmit an important message.
Other Features
- Text messaging – send and receive messages up to 32 characters
- Emergency call and Lone Worker functions
- Individual, group, talkgroup, multiGroup calls
- D-SUB 25-pin connector with optional OPC-2407 cable for interfacing with other devices
- ACC connector for Ignition Sensing function
- TX Noise Cancelling to reduce background noise when operating in noisy environments

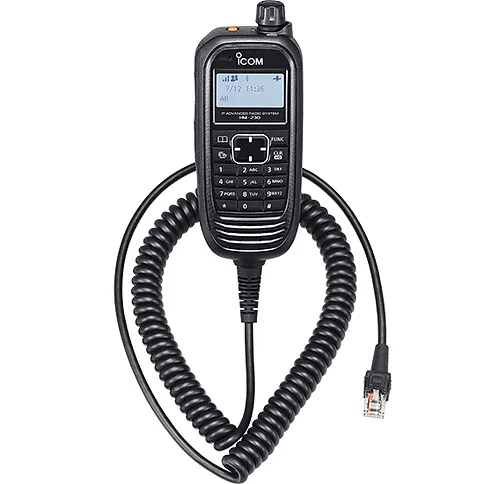

- Optional HM-230HB COMMANDMIC provides hand-held-like user interface and more flexibility in equipment mounting
| Network 4G bands 3G bands |
LTE B2, B4, B5, B12 (USA) W-CDMA B2, B5 (USA) |
| Dimensions (wxhxd) | 125 × 29 × 156 mm; 4.9 × 1.1 × 6.1 in (Approximate) |
| Weight | 840 g; 1.9 lb (Main unit, approximate) |
| Voice Codec | G. 726 |
| Audio output power | More than 4 W (External SP, at 10% distortion into a 4 Ω load) |
| External microphone impedance | 600 Ω |
| Bluetooth® | Version 2.1 +EDR |
| GPS | Built-in |
| LAN | RJ-45 type x 1 (Auto MDI/MDI-X) 10BASE-T/100BASE-TX |
| External speaker jack | 3.5 mm (1/8 in) (d), 4 Ω |
| External equipment connector | D-SUB 25-pin type (The optional OPC-2407 is required) |
| Operating temperature range | –10°C to +60°C; 14°F to +140°F |
| IP rating | IP54 (Dust-protection, water resistance) |
All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications & IP Rating
Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.
| Standard | MIL 810 G | |
| Method | Proc | |
| Low Pressure | 500.5 | I, II |
| High Temp. | 501.5 | I, II |
| Low Temp. | 502.5 | I, II |
| Temp. Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Dust Blowing | 510.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Supplied Accessories
- HM-241, speaker microphone
- DC power cable
- LTE antenna (2 pcs)
- GPS antenna
- Mounting bracket kit
- Microphone hanger
