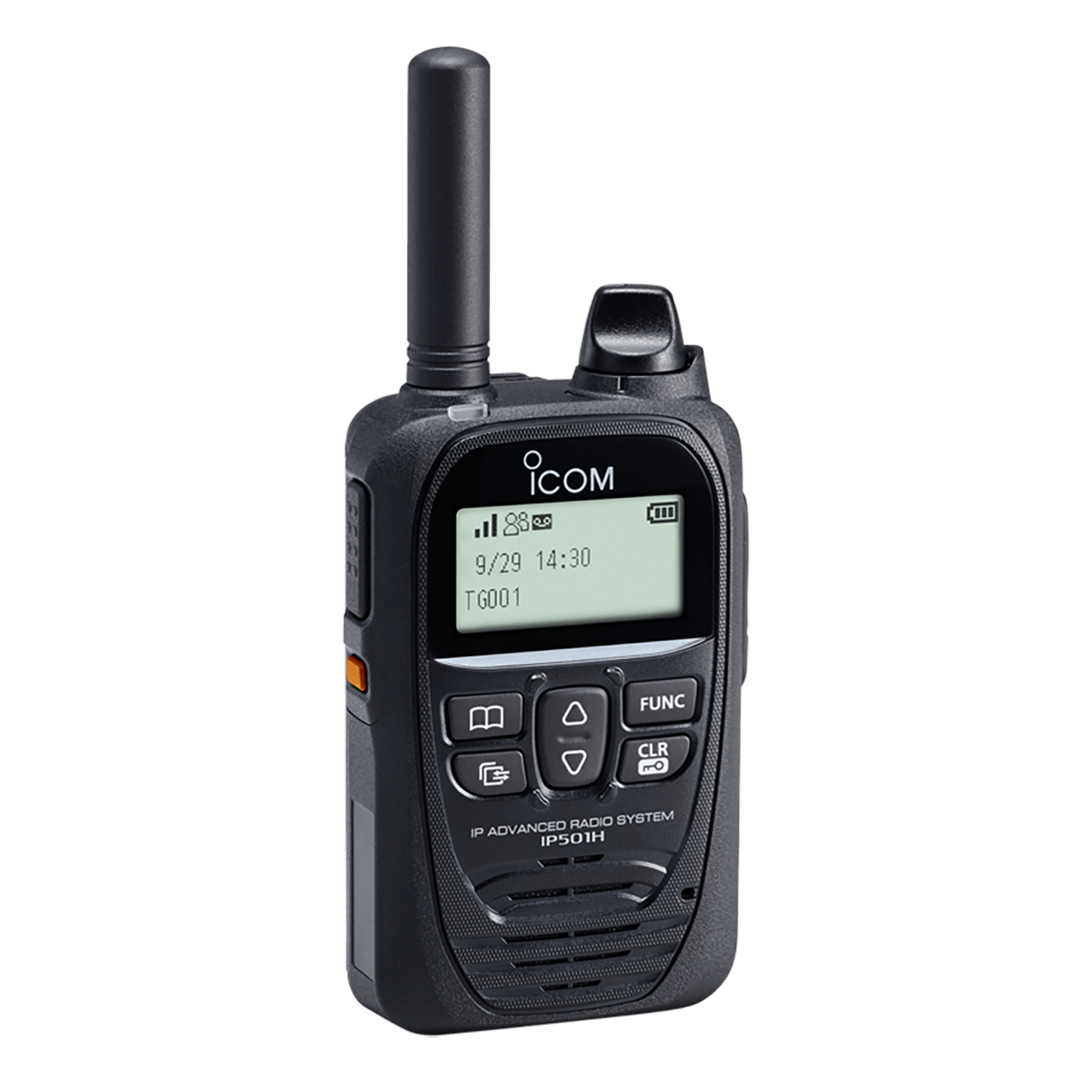

IP501H

SKU: IP501H Categories: ,

Instant Wide Area Coverage Over an LTE (4G) and 3G Network

Instant Wide Area Coverage Over LTE
The IP501H provides wide-area communication using an LTE (4G) and 3G network and instantaneous communication. Individual calls, Group calls, or All calls can be made the same way as a conventional two-way radio. The IP501H does not require its own repeaters or IP network, which reduces the costs of building and maintaining a wide area radio network.


Description

Instant Wide Area Coverage Over LTE



The IP501H provides wide-area communication using a LTE (4G)  network and instantaneous communication. Individual calls, group calls, or all calls can be made the same way as a conventional two-way radio. The IP501H does not require its own repeaters or IP network, which reduces the costs of building and maintaining a wide area radio network.



Networks: 3G and 4G
Bluetooth: Built-in
Output Power: Internal SP: 400 mW
External SP: 200 mW
Waterproof Rating: IP67



Communicate Effectively

The IP501H provides full-duplex communication providing smooth telephone style conversations. The IP501H users can talk and receive at the same time. Multiple users in the system can initiate calls respectively. There are no requirements to check or wait for channel availability.



Priority Interrupt Calling

The IP501H supports group calls with three or more people. In case of an emergency, you can break into an ongoing call to transmit an important message.



Turn a Handheld Into a Mobile

Add the optional Bluetooth® charger kit to your vehicle to make calls with the speaker microphone, while charging the IP501H. Even when the IP501H is not dropped into the BC-218, the Bluetooth® function enables you to wirelessly use the speaker microphone.



  • Items needed for the car charger kit:
  • BC-218 charger cradle with Bluetooth®
  • CP-23L cigarette lighter cable
  • MBA-7 mounting bracket
  • MBF-1 mounting base
  • HM-215 speaker microphone for BC-218



Other Features

  • High-quality, clear audio using G.726 Vocoder
  • Individual, group, talkgroup, multiplex talkgroup, and all calls
  • Emergency button, Lone Worker, and Man Down functions
  • Vibration alert function notifies of an incoming call
  • Text message reception and preprogrammed message transmission
  • Up to 500 memory address book (including individual, group, talkgroup and telephone lists)
  • Voice message recording



Specifications

Network
4G bands
3G bands
LTE B2, B4, B5, B17
W-CDMA B2, B5
Dimensions (wxhxd) 59 × 95 × 32 mm; 2.3 × 3.7 × 1.3 in (with BP-272)
Weight 240 g; 8.5 oz (with BP-272 and antenna)
Voice Codec G.726 (32 kbps)
AF output power
Internal SP
External SP
400 mW (16 Ω at 10% distortion)
200 mW (8 Ω at 10% distortion)
Operating time* (5:5:90 duty cycle.) More than 17 hours (with BP-272)
Bluetooth Ver 2.1 +EDR
GPS Built-in
Operating temperature –10 °C to +60 °C; +14 °F to +140 °F
IP rating IP67/55/54

*Operating time may differ depending on operating environments. All stated specifications are subject to change without notice or obligation.

All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications

Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.

Standard MIL 810 G
Method Proc
Low Pressure 500.5 I, II
High Temp. 501.5 I, II
Low Temp. 502.5 I, II
Temp. Shock 503.5 I-C
Solar Radiation 505.5 I
Rain Blowing/Drip 506.5 I, III
Dust Blowing 510.5 I
Immersion 512.5 I
Vibration 514.6 I
Shock 516.6 I, IV

Also meets equivalent MIL-STD-810-C, -D, -E and -F.

Supplied Accessories

  • Battery pack, BP-272
  • Belt clip, MB-135
  • Hand strap
  • Antenna
General Specifications
Radio Model IP501H
Number Of Channels 16
Operating Temperature –10 °C to +60 °C; +14 °F to +140 °F
Weight 240 g; 8.5 oz
IP Rating IP67/55/54
Power Output Internal SP | 400 mW (16 Ω at 10% distortion) External SP | 200 mW (8 Ω at 10% distortion)
Dimensions 59 × 95 × 32 mm; 2.3 × 3.7 × 1.3 in

Additional information

Weight 0.5 lbs
Dimensions 2.3 × 3.7 × 1.3 in
Brand

IP Rating

, ,
