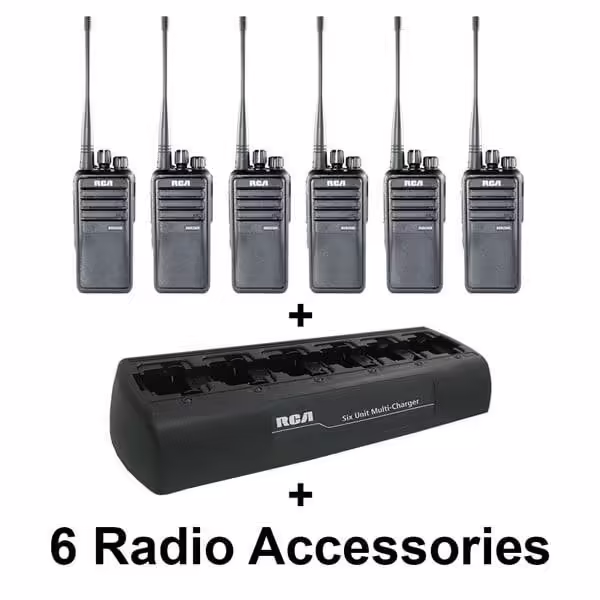

RDR2500 PERFECT PACKAGE WITH 6 BANK CHARGER
$1,567.80 – $1,681.20
Works with your Motorola, RCA, Kenwood, Icom, or any of your Two-Way Radios
This rugged professional portable is perfect for anyone who believes that having fast, reliable communication throughout their facility is a key to a safer and more productive work environment. Simple and cost-effective, the RCA digital radios are designed to connect your workforce efficiently and provide you with reliable communication allowing you focus on growing your business.Crystal clear audio quality with loud 1 watt of power speaker, reliable coverage, and long-lasting battery life are just few of the outstanding benefits the RDR2500 series radios will deliver to you without making a dent in your budget.
Fully compatible with your existing Analog and Digital radios, the RDR2500 series combine the best of both, the legacy Analog and the new, improved Digital two-way radio technologies, giving you the flexibility to upgrade to Digital at your own speed or simply expand your radio fleet.
With its flexibility the RDR2500 series radios can be used in a wide range of applications such as manufacturing, warehousing, construction, hotels, schools and colleges.
Description
Works with your Motorola, RCA, Kenwood, Icom, or any of your Two-Way Radios
This rugged professional portable is perfect for anyone who believes that having fast, reliable communication throughout their facility is a key to a safer and more productive work environment. Simple and cost-effective, the RCA digital radios are designed to connect your workforce efficiently and provide you with reliable communication allowing you focus on growing your business.Crystal clear audio quality with loud 1 watt of power speaker, reliable coverage, and long-lasting battery life are just few of the outstanding benefits the RDR2500 series radios will deliver to you without making a dent in your budget.
Fully compatible with your existing Analog and Digital radios, the RDR2500 series combine the best of both, the legacy Analog and the new, improved Digital two-way radio technologies, giving you the flexibility to upgrade to Digital at your own speed or simply expand your radio fleet.
With its flexibility the RDR2500 series radios can be used in a wide range of applications such as manufacturing, warehousing, construction, hotels, schools and colleges.
General Specifications
| Radio Model | RDR2500 |
| Number Of Channels | 32 |
| Frequency Bands | VHF: 136-174 MHz / UHF: 400-470 Mhz UHF: 450-500 Mhz |
| Operating Temperature | (-20°C)~+50°C / (-4°F)~+122°F |
| Weight | 318g / 0.7 lb w/ B2618LI |
| Size: HxWxD (Inches) | 5.3” x 2.3” x 1.3” (without antenna) |
| IP Rating | IP54 Dust and Water Resistant |
| Durability Standards | MIL-STD 810 C, 810 D, 810 E, 810 F, 810 G |
| Standard Battery | B2518LI - 1800mAh / 13.32Wh Lithium-Ion Battery |
| Battery Life | Up to 14 Hours (Digital) / 10 Hours (Analog) w/ B2618LI |
| Channel Spacing | Digital: 12.5 KHz / Analog: 12.5 KHz/25 KHz |
| Digital Protocol | Digital DMR ETSI Standard TS 102 361-1,-2,-3 |
| Digital Vocoder Type | AMBE+2TM |
| Conformance | FCC, IC, FCC 2013 Narrowband Compliant |
| Voltage | DC 7.4V |
| Storage Temperature | (-40°C)~+80°C / (-40°F)~+176°F |
| Optional Battery | B2623LI - 2300mAh / 17.02Wh Lithium-Ion Battery |
Receiver Specifications
| Frequency Stability | ±0.5 ppm |
| Intermodulation | 60dB |
| Adjacent Channel Selectivity | 65dB @ 12.5 KHz |
| Rated Audio Output Power | ≤3% |
| Analog Sensitivity | 0.22μV / -120dBm (12dB SINAD) |
| Digital Sensitivity | 0.2uV/-121dBm (BER 5%) |
| Co-Channel Rejection | 12dB @ 12.5 KHz |
| Spurious Response Rejection | 70dB |
| Receive Spurious Radiation |
-57dBm@<1 GHz -47dBm@>1 GHz |
| Block | 84dB |
| Rated Audio Distortion | 1W @ 16 Ohms |
Transmitter Specifications
| Transmit Power | 5W |
| FM Hum And Noise | 40db @ 12.5 KHz |
| Audio Distortion | ≤3% |
| Audio Frequency Response (TX) | +1dB---(-3)dB |
| Transmit Spurious Radiation |
-36dBm@<1 GHz -30dBm@>1 GHz |
| Adjacent Channel Power | -60dB @ 12.5 KHz |
| Modulation Limit | 2.5KHz @ 12.5 KHz |
| Idle Slot Power | -57dBm |
| FSK Error | ≤3% |
| Emission Designator (Analog) | 16K0F3E / 11K0F3E |
| 4FSK Digital Modulation | 12.5 KHz Data: 7K60F1D & 7K60FXD 12.5KHz Voice: 7K60F1E & 7K60FXE Combination of 12.5 kHz Voice and Data: 7K60F1W |
| Intermodulation | 60dB |
| Rated Audio Distortion | 1W @ 16 Ohms |
Additional information
| Radio | UHF, VHF |
|---|---|
| Accessory of your choice | SM310 Speaker Mic Head, SM220-X03S Speaker Mic, B2518LI – 1800 mAh Lithium Ion Battery, Over the Ear Style 1 Wire Surveillance Kit RCA SK12DL-X03S, Ear-Bud Style 1 Wire Surveillance Kit RCA SK12EH-X03S, Secret Service Style 1 Wire Surveillance Kit RCA SK12NE-X03S, HN3500FL Nylon Holster |
| Radio Class | |
| Recommended Industry | Education, Golf Courses, Healthcare, Hotels & Resorts, Security, Warehousing & Logistics |
