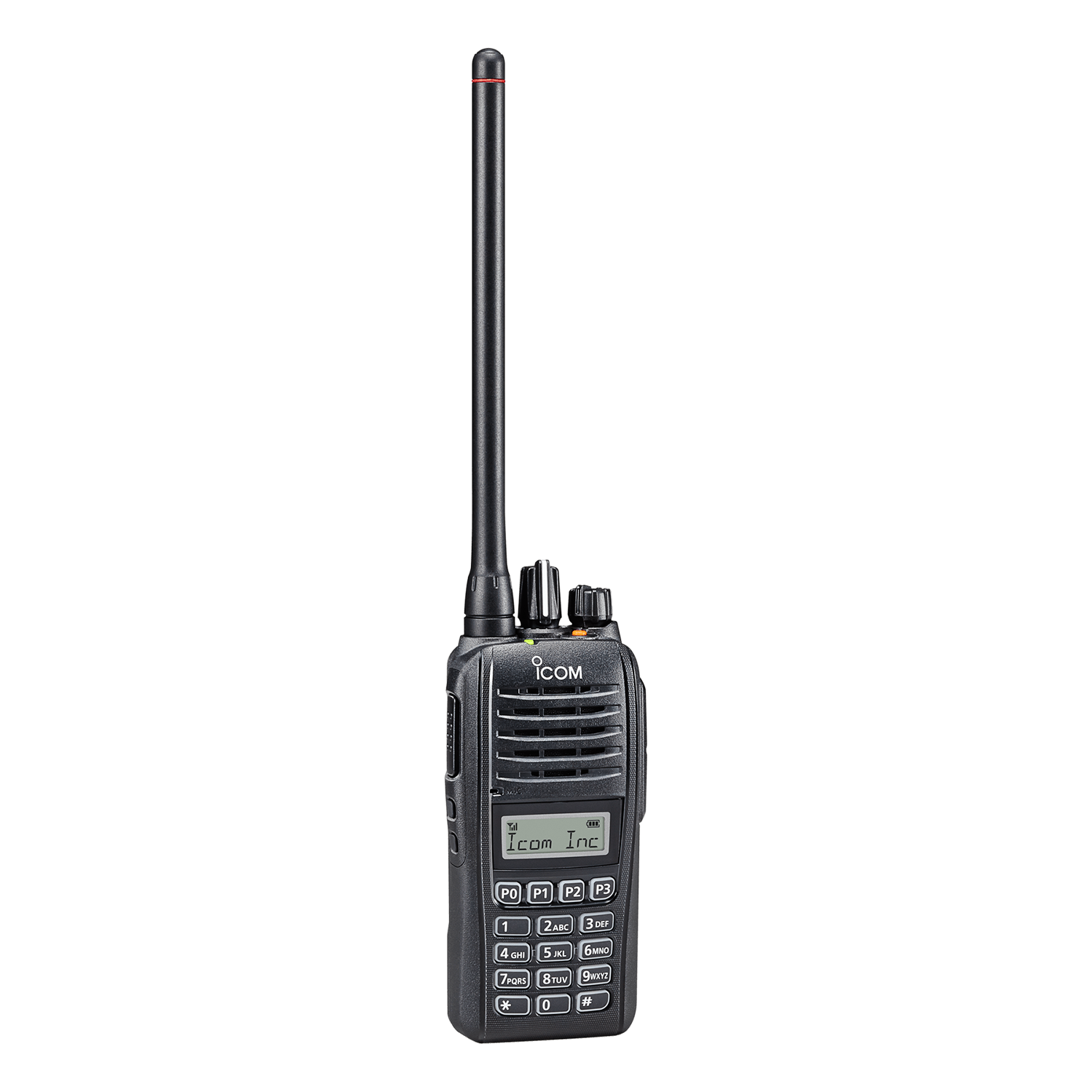

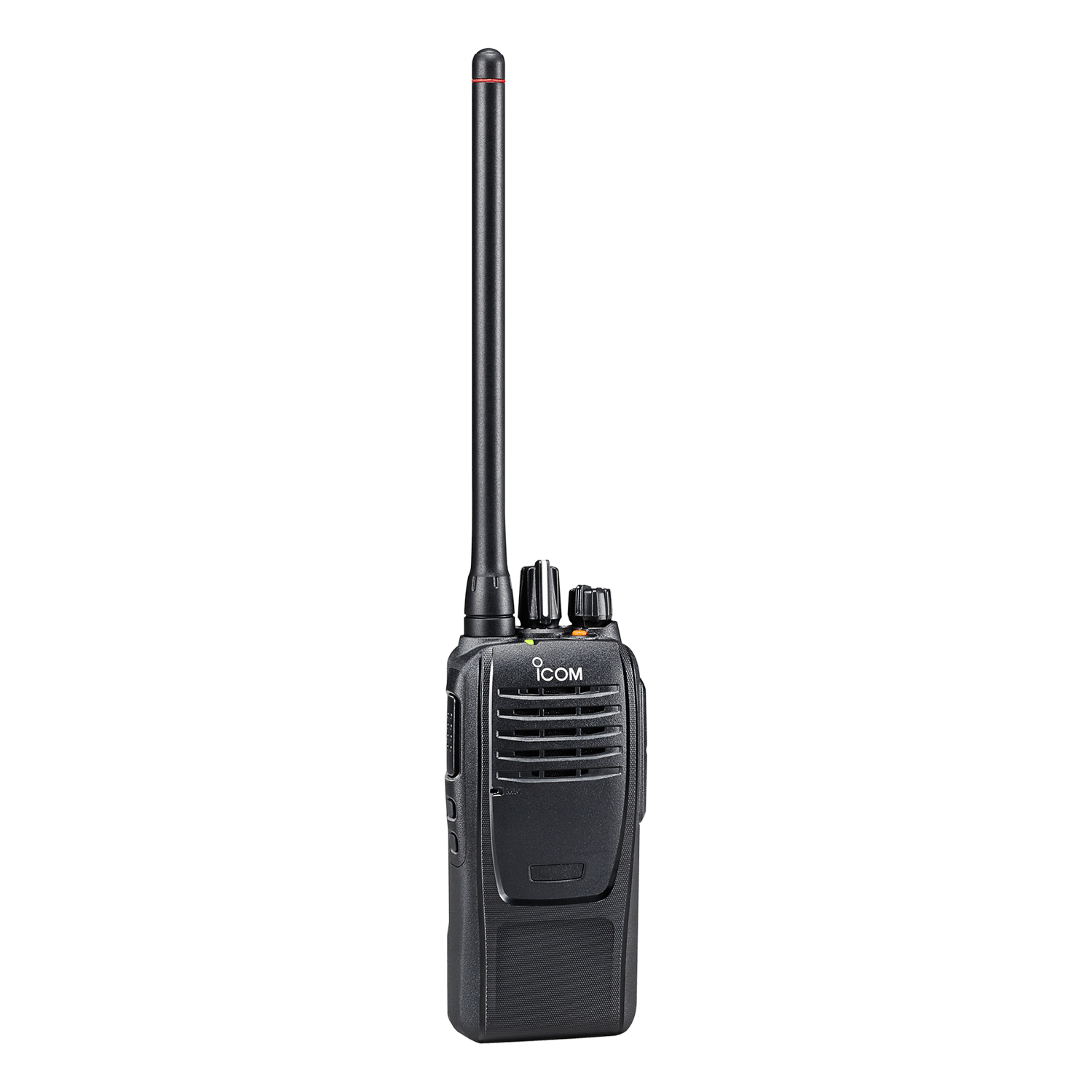

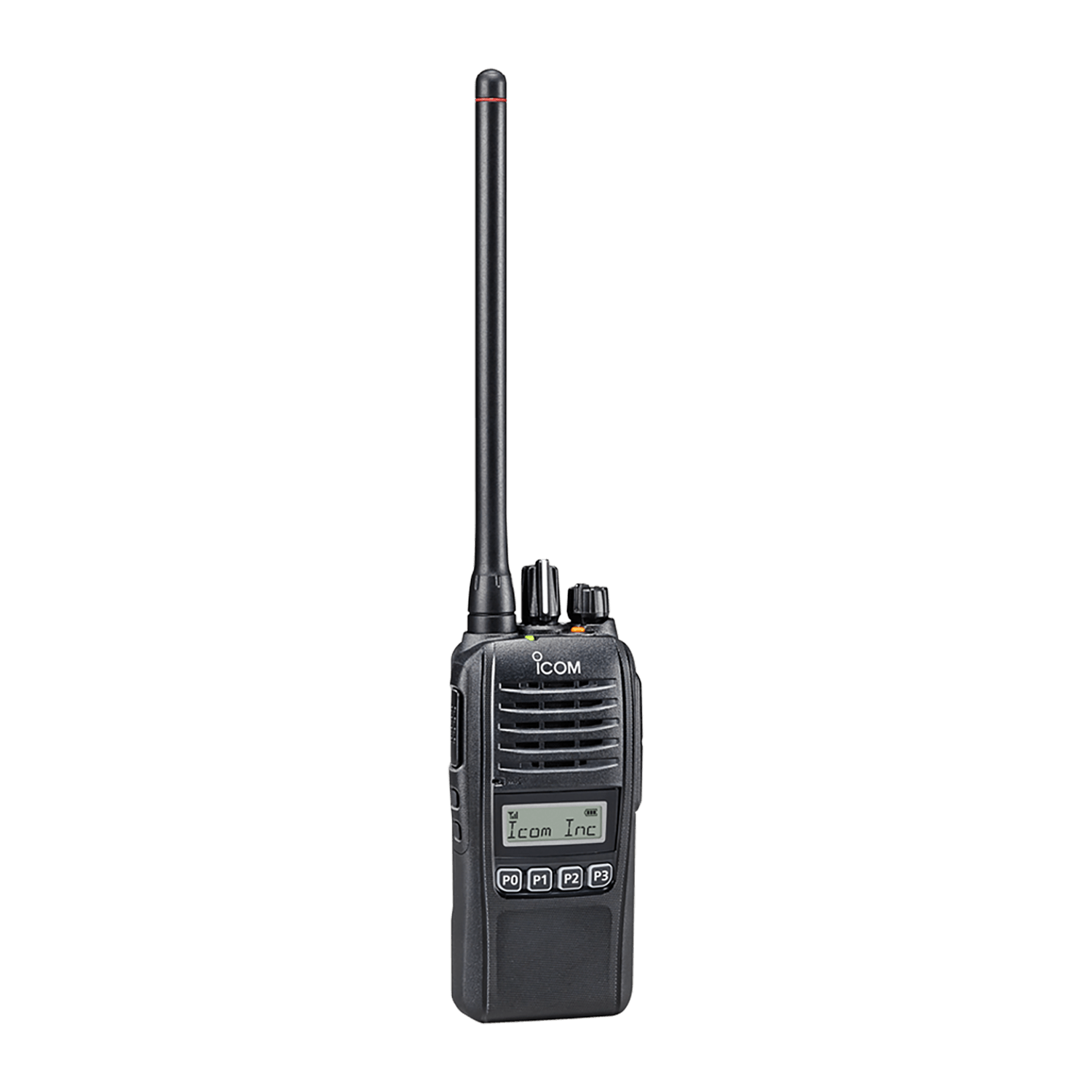

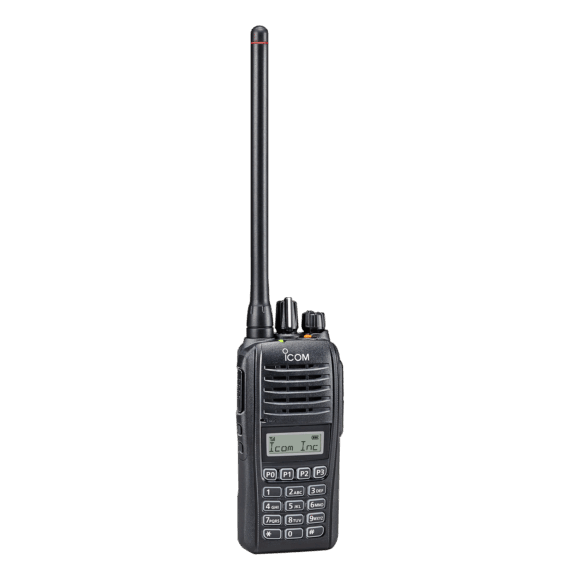

Icom F1100D / F2100D Entry Level IDAS Digital Handheld Radio
Icom F1100D VHF 136-174 MHz IDAS Digital Handheld Radio
Icom F2100D UHF 400-470 MHZ 470-512 MHz IDAS Digital Handheld Radio
Brochure / Manual
Brochure
Description
Big on Audio, Small on Size
1500 mW Class Leading Audio
Compact, Waterproof IDAS Portables
The F1100D/F2100D Series is a sleek portable radio that fits nicely in your hand and is designed to be the go-to for entry to mid-level digital radio. Three model choices, basic – no display, simple – display with simple keypad, and full – display and fully DTMF keypad, include an array of features such as IDAS digital mode operation in IDAS conventional and multi-site conventional, intelligent emergency functions, and a rugged, waterproof, and dustproof chassis. A high-power handling capacity speaker and acoustic improvements provide class-leading (1500 mW) loud and clear audio. This radio is ideal to meet the needs of a wide range of businesses, including education, hospitality, and retail.
Multiple Operating Modes*
- Analog FM
- NXDN™ /dPMR™ conventional
- NXDN™ Type-D single-site trunking
*Available protocol differs depending on the version.
Over-the-Air Alias (OAA) Function Displays the Caller’s Name without Programming
(IC-F1100DT/DS and IC-F2100DT/DS only)
AquaQuake™ Function Clears Any Water Ingress That May Penetrate the Speaker Grill of the Unit
Motion/Stationary Detection, Man Down and Lone Worker Functions
Operating Time of Up To 18 Hours with the Supplied Battery (BP-280)
IDAS™ Conventional and Type-D Single-Site Trunking
General Features
- 136–174, 350–400, 400–470, 450–512, 450–520 MHz versions
- 128 Channels / 8 Zones (for LCD types)
- 16 Channels (for non-display types)
- Icom’s customized speaker offers a louder 1500 mW audio output
- An engineered casing that amplifies and improves acoustic sound clarity
- Compact (52.2 (W) × 111.8 (H) mm; 2.1 × 4.4 in) and lightweight
- IP67/55/54 waterproof and dust-tight protection
- Tested to 12 categories of MIL-STD-810-G environmental tests
- AquaQuake™ – Expels water ingress from the speaker grill
- DTMF autodial memories
- 16-position rotary selector and ON/OFF volume knob
- Programmable keys – Increase the number of programmable key assignments by using the “Shift key”
- Operating times of up to 18 hours (with the supplied BP-280 battery pack)
- Eight character alphanumeric display (for LCD types)
- Three color LED
Operating Mode*
- NXDN or dPMR Mode 1/Mode 2 conventional
- NXDN or dPMR multi-site conventional over IP network
- NXDN Type-D single-site trunking
- Analog mode
- Analog/digital mixed operation (conventional mode)
(* Available protocol differs depending on the version)
Digital Functions (Voice and Data)
- AMBE+2™ vocoder
- Over-the-Air Alias (OAA) displays the caller’s name without programming (for LCD types)
- Individual, Group and All call
- Late entry for Group call
- Status call and Polling
- Short data messages (for LCD types)
- Call alert (NXDN)
- Radio check (RX only) (NXDN)
- GPS position capabilities (requires HM-171GPW)
- Up to 500 ID numbers for IDAS or MDC 1200 signaling system can be saved in the Call List to show the alias name
Analog Functions
- CTCSS and DTCS tone
- 2-Tone and 5-Tone
- MDC functions*; PTT ID, Emergency (TX/RX), Radio check (RX), Stun (RX), Revive (RX)
- BIIS PTT ID transmission
* Depending on the version
Safety and Security
- Digital voice scrambler (Low level encryption)
- Radio Stun/Revive/Kill (RX only)
- Remote monitor (NXDN)/ambience listening (dPMR)
- Man down, Lone worker and Emergency call key capability
- Motion and Stationary detection function
- Surveillance function temporarily turns OFF the beep and LED indicator
- Power ON password (for LCD types)
Scan Functions
- Priority scan monitors one or two priority channels while scanning non-priority channels
- Voting scan automatically selects the optimal repeater site
- Mode dependent scan automatically changes the scan list, depending on the operating channel
- Power ON scan function
- Talk Back timer
Voice/Audio Functions
- Channel announcement function
- VOX function for hands-free operation
- Siren sound for security alarm
Additional information
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 2.1 × 4.4 × 1.2 in |
| Product Type | |
| Brand | |
| Radio Compatibility | |
| IP Rating | |
| Radio Keypad | |
| Radio Power | |
| Recommended Industry | |
| Radio Class | |
| Channels | 128 Channels, 16 Channels |
