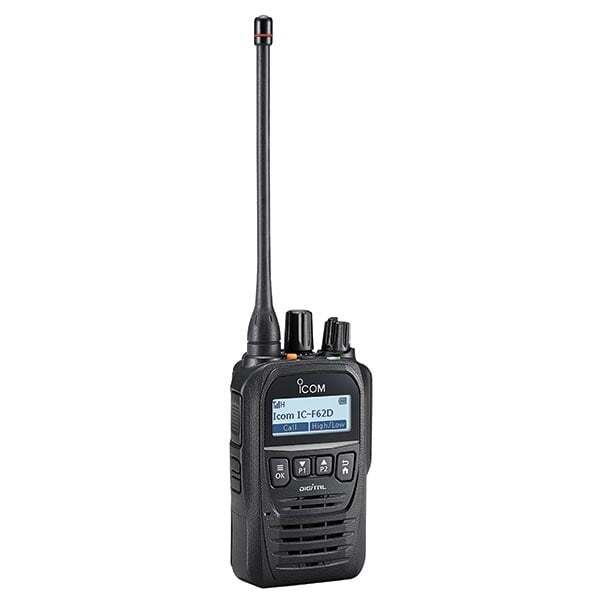

Icom F52D / F62D Analog & IDAS Digital Compact Waterproof Handheld Radio
Icom F52D VHF 136-174 MHz IDAS Digital Waterproof Handheld Radio
Icom F62D UHF 400-470 MHZ 470-512 MHz IDAS Digital Waterproof Handheld Radio
Intrinsically Safe Versions F52D UL and F62D UL Available
Product Documents
Description
A New Legacy: Slimmer, Smaller and Infinitely Better
Icom’s Smallest, Waterproof IDAS™ Handheld
The F52D series portables are the perfect radio to migrate from the F50/V series to IDAS digital. Small and lightweight, the F52D Series comes with dozens of modern features and functions customers will want. The submersible portable also includes popular F50V features like vibration alert and voice recording/playback for up to 8 minutes. New features include built-in Bluetooth™, a continuous 20-position rotary selector, tilted ON/OFF volume knob for easy access, improved dot-matrix display with status icons, and OTAP. Icom is the choice when you want to take your communications to the next level.
Small, Light and Feature Packed
Multiple Operating Modes
- Analog FM
- NXDN™/dPMR™ conventional
- Upgradable to NXDN™ Type-D trunking
- Upgradable to dPMR™ Mode 3 trunking*
* Not available in all regions.
Full Dot-Matrix Display, Rotary Channel and Volume Knob for Simple Every-day Operation
Built-in Bluetooth®, Voice Recording, Active Noise Cancelling Functions
Motion/Stationary Detection, Man Down and Lone Worker Functions
OTAP (Over-the-Air Programming) Function Easily Reconfigures In-the-Field Radios
Intelligent Battery Management Helps to Extend the Battery Life
Intrinsically Safe Version
The hazard ready F52D UL/F62D UL is the perfect radio for commercial customers operating in harsh environments. The F52D UL/F62D UL with the intrinsically safe battery meet the ANSI/TIA-4950-A, ANSI/UL 121201 requirements for:
- Intrinsically Safe: Division 1, Class I, Groups C, D
- Class II, Groups E, F, G
- Class III T3C
- Non-incendive: Division 2, Class I, Groups A, B, C D
General Features
- 136–174, 350–400, 400–470, 450–512, 450–520 MHz versions
- 512 CH / 128 Zones
- 14 character dot-matrix display with status icons
- Improved user interface
- Programmable functions and menu items in a language other than English (For example French, Spanish, German, Russian and Turkish)
- Backlit LCD and buttons
- Continuous rotary knob and ON/OFF volume knob
- 1300 mW loud and intelligible internal speaker audio
- MIL-STD-810 G shock, vibration, temperature and more
- IP67/66/55/54 waterproof & dust-tight protection
- 29 mm (1.1 inch) slim dimensions (with BP-290 battery pack)
- Intelligent battery information
- License key upgrade (trunking)
Operating Mode
- NXDN or dPMR mode 1/2 conventional
- NXDN or dPMR multi-site conventional over IP network
- NXDN type-D single/multi-site trunking (License key, ISL-UGMTR required)
- dPMR mode 3 trunking (License key, ISL-UGMD3 required. Not available in all regions.)
- 12.5 kHz digital mode (NXDN conventional)
- Analog mode
- Analog/digital mixed operation
Digital Functions (Voice and Data)
- AMBE+2™ vocoder
- Over-the-Air Programming (OTAP) function (OTAP manager, CS-OTPM1 required)
- Over-the-Air Alias (OAA) sends own name with a call
- Over-the-Air Update (OTAU) changes the repeater channel data and site code over the air (NXDN type-D trunking)
- Direct mode communication
- Individual, group and all call
- Late entry for group call
- Status call and polling
- Short data messages
- Call alert (NXDN)
- Transparent data mode
Analog Functions
- CTCSS and DTCS tone
- 2-Tone and 5-Tone
- MDC functions (Depending on version)
- BIIS 1200 (MSK)
- LTR™ trunking (Depending on version)
- DTMF autodial
Security and Safety
- Digital voice scrambler (Low level encryption)
- Analog voice scrambler (Inversion)
- Power ON password
- Tactical group temporarily reconfigures user talkgroups
- Radio stun/revive/kill
- Remote monitor (NXDN)/Ambience listening (dPMR)
- Emergency key for emergency call
- Man down function
- Lone worker function
- Motion/stationary detection
Scan Functions
- Priority scan
- Voting scan for site roaming
Voice/Audio Functions
- Voice announcement (Channel number and zone)
- VOX function for hands-free operation
- Voice recording/playback (Up to 8 minutes)
- TX/RX active noise canceller
- TX/RX audio equalizer
- Audio compander (Analog mode)
Hardware
- Programmable vibration alert
- Built-in Bluetooth® for wireless audio and data
- Variety of optional audio accessories including speaker-microphones, headsets and earphones
- 14-pin accessory connector
- Wireless radio programming over Bluetooth®
Additional information
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 2.2 × 3.6 × 1.4 in |
| Product Type | |
| Brand | |
| Radio Compatibility | |
| IP Rating | |
| Radio Keypad | |
| Radio Power | |
| Recommended Industry | |
| Radio Class | |
| Channels | 512 Channels |
